ICON Process Controls

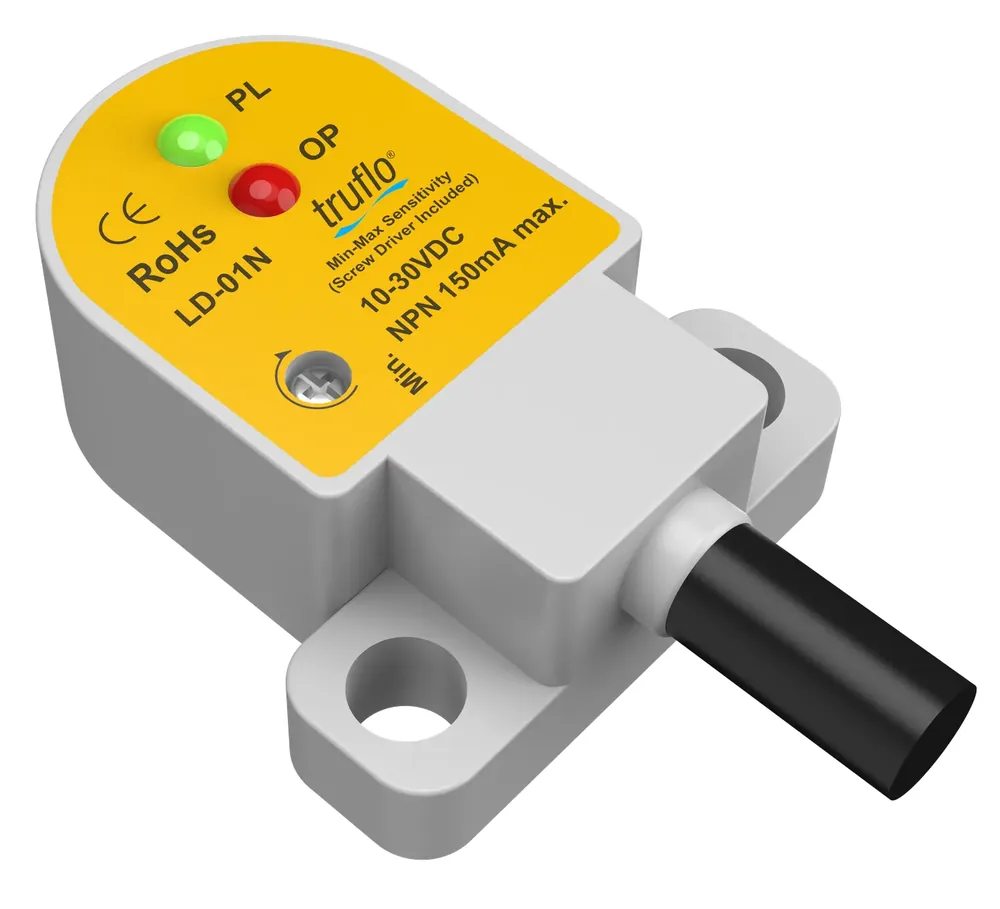

ICON Process Controls LevelPro LD-01N Leak Detection Switch
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Ambient temperature
−20 to 60 °C (−4 to 140 °F)
Type
Plastic capacitive leak detection switch (Truflo LD Series / LD-01N)
Body Material
PP body with PVC cable
Cable Length
2 m cable (compact LD-01N / LD-01P)
Supply
10–30 VDC
Outputs
NPN or PNP pulse / SSR switch; max 150 mA
| Parámetro | Valor |
|---|---|
| Ambient temperature | −20 to 60 °C (−4 to 140 °F) |
| Type | Plastic capacitive leak detection switch (Truflo LD Series / LD-01N) |
| Body Material | PP body with PVC cable |
| Cable Length | 2 m cable (compact LD-01N / LD-01P) |
| Supply | 10–30 VDC |
| Outputs | NPN or PNP pulse / SSR switch; max 150 mA |
| Power Consumption | Approx. 3 W |
| Enclosure | NEMA 4X |
| Indication | Green LED power; red LED alarm; adjustable sensitivity |
| Applications | Containment dikes, double-wall tanks, sumps, dosing skids, corrosive conductive liquids |
| Feature | Low-profile floor design; capacitive fail-safe operation |
