Rosemount

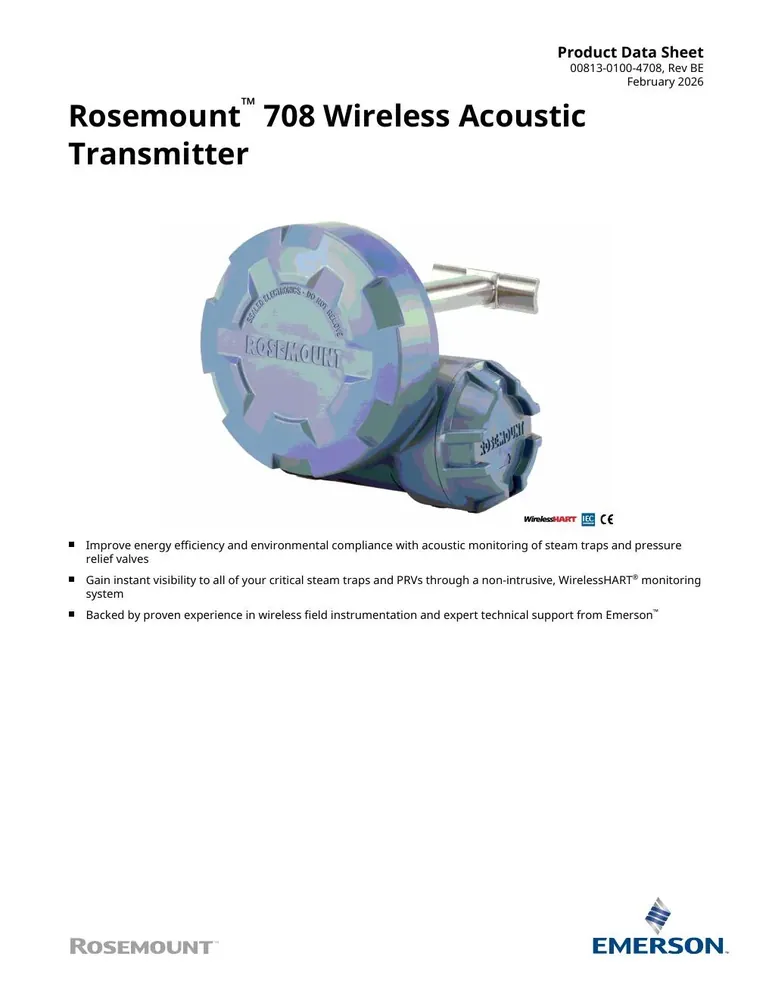

Rosemount 708 Wireless Acoustic Transmitter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Acoustic level 0–255 counts; temperature −40 to 260 °C (−40 to 500 °F)
Output
IEC 62591 WirelessHART 2.4 GHz DSSS; reports acoustic level, temperature, device status, leak/release events
Approvals
IECEx intrinsic safety (I7); Korea intrinsically safe (IP); Additional regional hazardous-location options per PDS
Mounting
Non-intrusive clamp/band mount to process piping (HC01/HC02/HC03 bands); high-temp hardware when process >260 °C
Notes
Specs from Rosemount 708 Product Data Sheet 00813-0100-4708 Rev BE (February 2026) and Reference Manual. Replaces skipped duplicate 88990 (3051S sibling of 38838).
Update Rate
User-configurable wireless update rate (option WA3)
| Parámetro | Valor |
|---|---|
| Measuring range | Acoustic level 0–255 counts; temperature −40 to 260 °C (−40 to 500 °F) |
| Output | IEC 62591 WirelessHART 2.4 GHz DSSS; reports acoustic level, temperature, device status, leak/release events |
| Approvals | IECEx intrinsic safety (I7); Korea intrinsically safe (IP); Additional regional hazardous-location options per PDS |
| Mounting | Non-intrusive clamp/band mount to process piping (HC01/HC02/HC03 bands); high-temp hardware when process >260 °C |
| Notes | Specs from Rosemount 708 Product Data Sheet 00813-0100-4708 Rev BE (February 2026) and Reference Manual. Replaces skipped duplicate 88990 (3051S sibling of 38838). |
| Update Rate | User-configurable wireless update rate (option WA3) |
| Power | Replaceable intrinsically safe lithium-thionyl chloride SmartPower module (order 701PGNKF separately); ~10-year life at reference conditions |
| Humidity Limits | 0 to 100% relative humidity |
| Housing | Aluminum or stainless options per ordering table; internal antenna WP5 compatible with green power module |
| Weight | Approx. 1.31 lb (0.595 kg) with power module |
| Applications | Steam trap monitoring; pressure relief valve leak/release detection; energy efficiency and environmental compliance |
| Protocol | WirelessHART (IEC 62591) |
