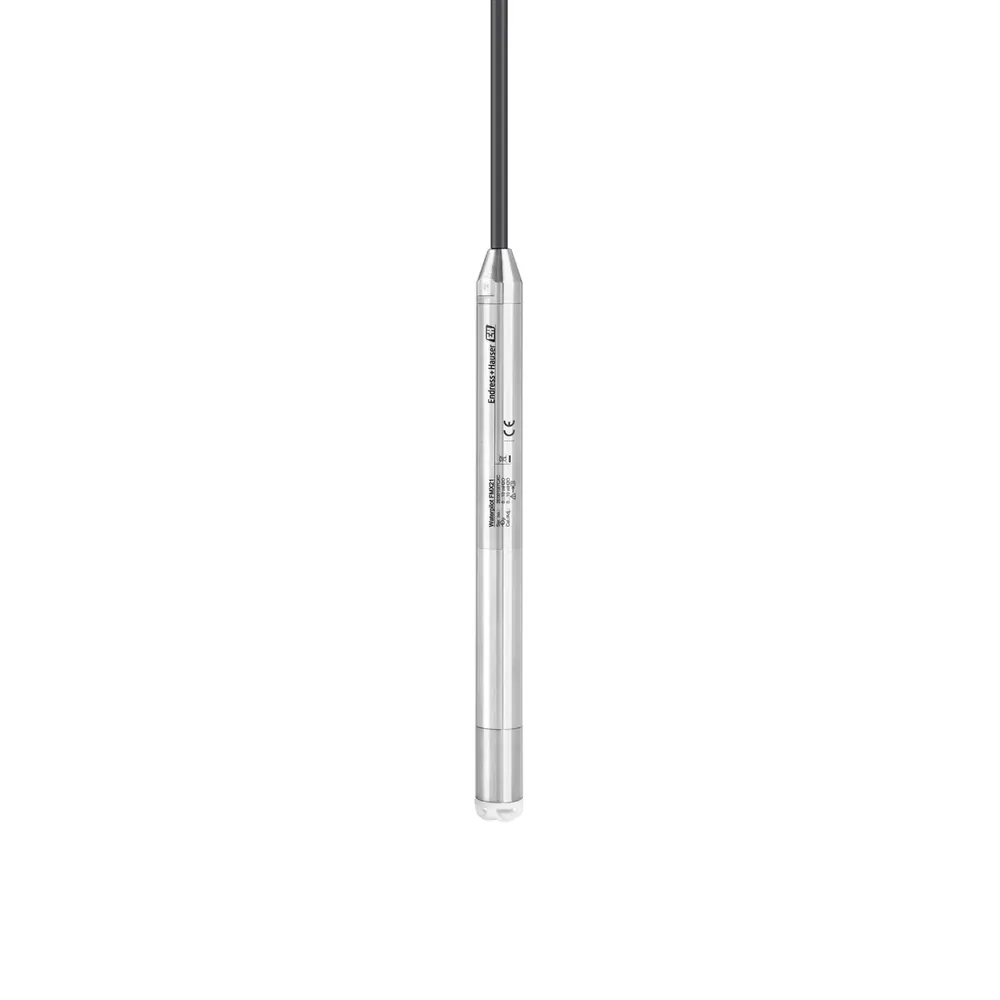

Endress+Hauser Waterpilot FMX21 Level Transmitter

SKU · 33973 · Waterpilot FMX21 · Marca: Endress+Hauser

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Accuracy

±0.2% of set span; optional Platinum ±0.1%

Supply

10.5…35 V DC (Ex: 10.5…30 V DC)

Process connection

Suspension clamp; cable mounting screw G1½ / NPT 1½

Wetted parts

316L / ceramic / PPS-polyolefin (version-dependent); cable PE/PUR/FEP

Approvals

ATEX/FM/CSA/IECEx; marine GL/ABS/BV/DNV; drinking water NSF/KTW/ACS

Measuring Principle

Hydrostatic pressure; capacitive ceramic cell

Parámetro	Valor
Accuracy	±0.2% of set span; optional Platinum ±0.1%
Supply	10.5…35 V DC (Ex: 10.5…30 V DC)
Process connection	Suspension clamp; cable mounting screw G1½ / NPT 1½
Wetted parts	316L / ceramic / PPS-polyolefin (version-dependent); cable PE/PUR/FEP
Approvals	ATEX/FM/CSA/IECEx; marine GL/ABS/BV/DNV; drinking water NSF/KTW/ACS
Measuring Principle	Hydrostatic pressure; capacitive ceramic cell
Pressure Range	100 mbar…20 bar (1.5…300 psi); max 200 m H2O
Process Temperature	-10…+70 °C (29 mm saltwater: 0…+50 °C)
Probe Diameters	22 mm (fresh water); 42 mm (wastewater); 29 mm (saltwater)
