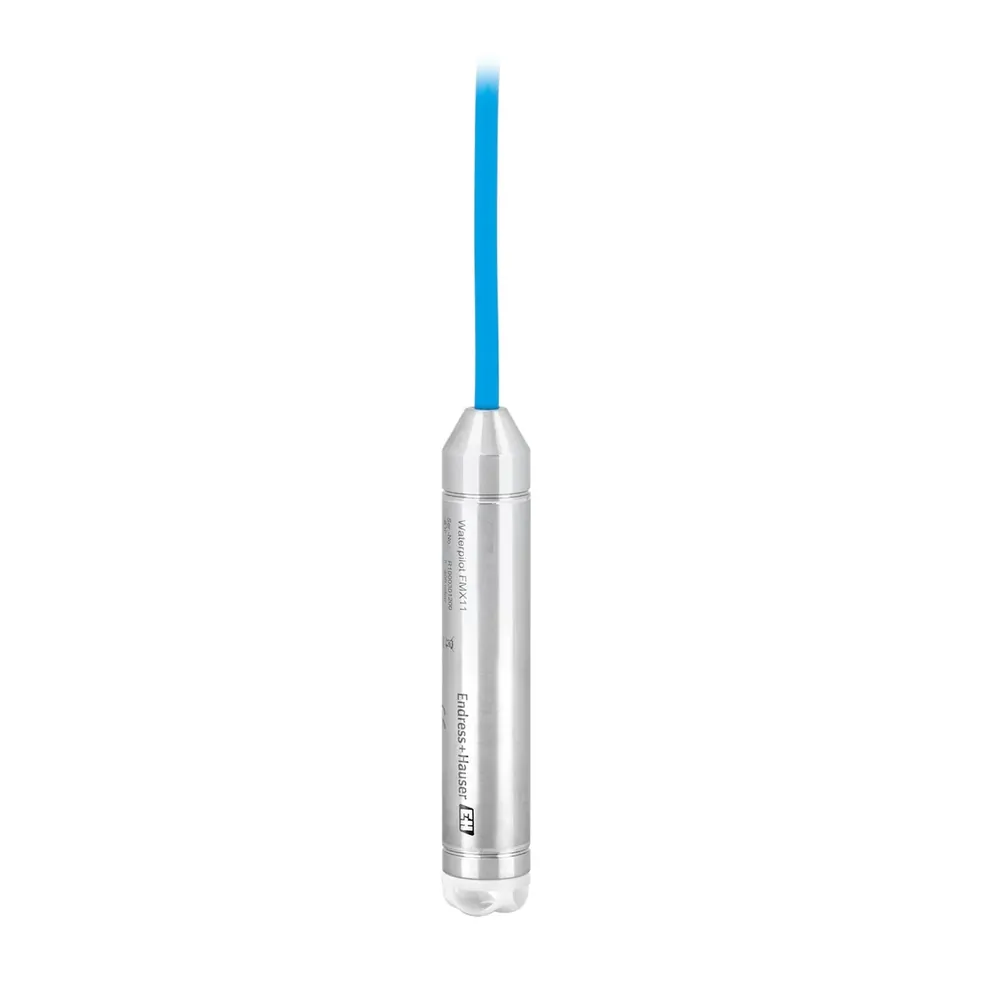

Endress+Hauser Waterpilot FMX11 Level Transmitter

SKU · 33974 · Waterpilot FMX11 · Marca: Endress+Hauser

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Measuring range

200 mbar…2 bar (3…29 psi); max 20 m H2O (66 ft H2O)

Accuracy

pn ≥400 mbar: 0.35%; pn <400 mbar: 0.50%

Output

4…20 mA two-wire

Supply

8…28 VDC

Wetted parts

316L; metal process membrane

Principle

Hydrostatic level; metal measuring cell

Parámetro	Valor
Measuring range	200 mbar…2 bar (3…29 psi); max 20 m H2O (66 ft H2O)
Accuracy	pn ≥400 mbar: 0.35%; pn <400 mbar: 0.50%
Output	4…20 mA two-wire
Supply	8…28 VDC
Wetted parts	316L; metal process membrane
Principle	Hydrostatic level; metal measuring cell
Process Temperature	−10…+70 °C (+14…+158 °F)
Overpressure	OPL up to 10 bar (145 psi) depending on cell
Cable Length	6…30 m orderable
Probe Diameter	22 mm (0.87 in) — boreholes / stilling wells
Drinking Water Approvals	NSF, KTW, ACS, DVGW
Protection	IP68; certifications cULus
