Endress+Hauser

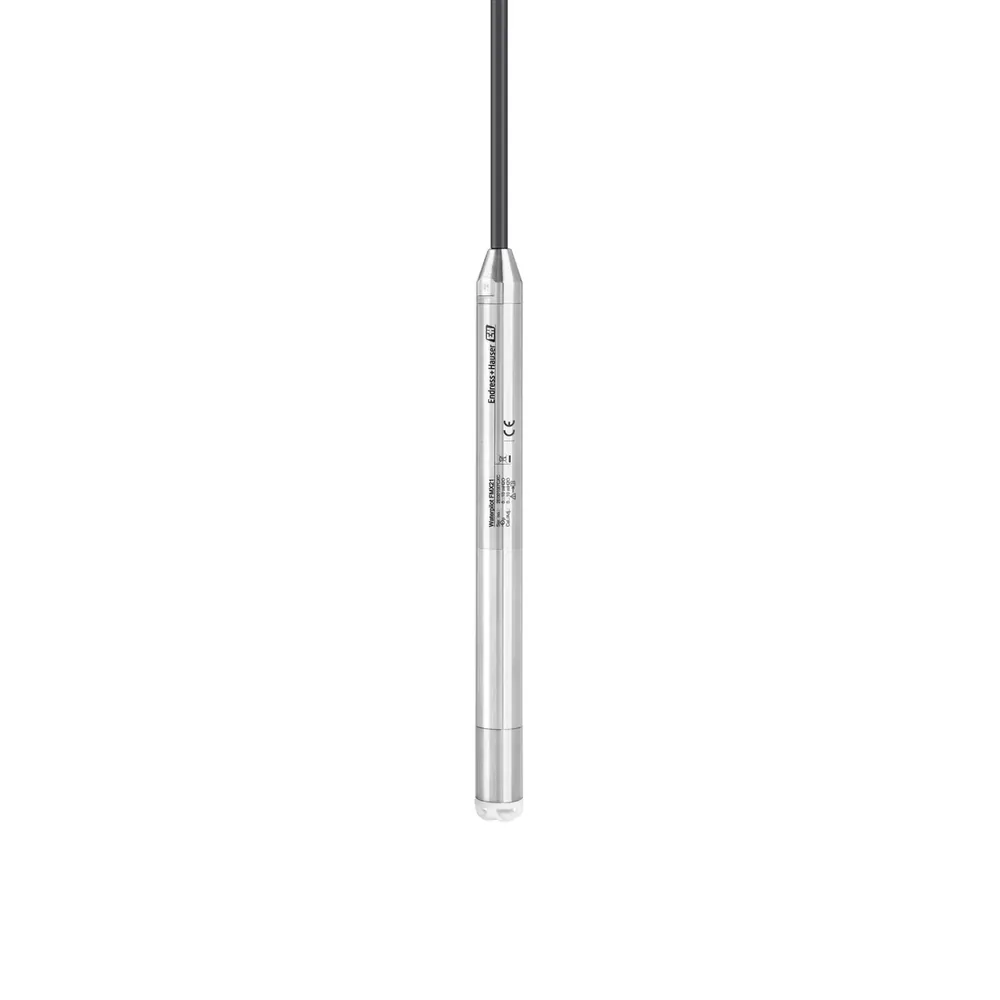

Endress+Hauser Waterpilot FMX21 Level Transmitter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Pressure measuring cell 100 mbar–20 bar (1.5–300 psi); max level distance 200 m H2O (656 ft); three probe diameters 22 / 29 / 42 mm
Accuracy
Standard reference accuracy ±0.2%; PLATINUM option ±0.1%; long-term stability 0.1% of URL/year
Output
4–20 mA or 4–20 mA HART; optional integrated Pt100 temperature
Supply
10.5–35 V DC (device); with optional Pt100 see TI supply chapter
Protection
IP68 permanently hermetically sealed (to 20 bar / ~200 m H2O class per TI)
Ambient temperature
Process/ambient −10–70 °C (14–158 °F); Ø29 mm saltwater version 0–50 °C
| Parámetro | Valor |
|---|---|
| Measuring range | Pressure measuring cell 100 mbar–20 bar (1.5–300 psi); max level distance 200 m H2O (656 ft); three probe diameters 22 / 29 / 42 mm |
| Accuracy | Standard reference accuracy ±0.2%; PLATINUM option ±0.1%; long-term stability 0.1% of URL/year |
| Output | 4–20 mA or 4–20 mA HART; optional integrated Pt100 temperature |
| Supply | 10.5–35 V DC (device); with optional Pt100 see TI supply chapter |
| Protection | IP68 permanently hermetically sealed (to 20 bar / ~200 m H2O class per TI) |
| Ambient temperature | Process/ambient −10–70 °C (14–158 °F); Ø29 mm saltwater version 0–50 °C |
| Communication | 4–20 mA; 4–20 mA HART |
| Approvals | ATEX; FM; CSA; IECEx; NEPSI; Marine GL/ABS/BV/DNV/LR; Drinking water KTW/NSF/ACS |
| Mounting | Suspension clamp / cable mounting screws; submersible probe |
| Sensor type | Oil-free capacitive ceramic (Al2O3) hydrostatic measuring cell |
| Notes | Catalog title Waterpilot FMX23 has no OEM match on endress.com; quarantine description and application match Waterpilot FMX21. Harvested TI00431P + BA00380P for FMX21. Product_name kept as catalog FMX23; model field = Waterpilot FMX21. |
| Wetted Parts | Ø22/42 mm: seal, 316L, ceramic; Ø29 mm: seal, PPS, polyolefin, ceramic; cable PE/PUR/FEP |
