Endress+Hauser

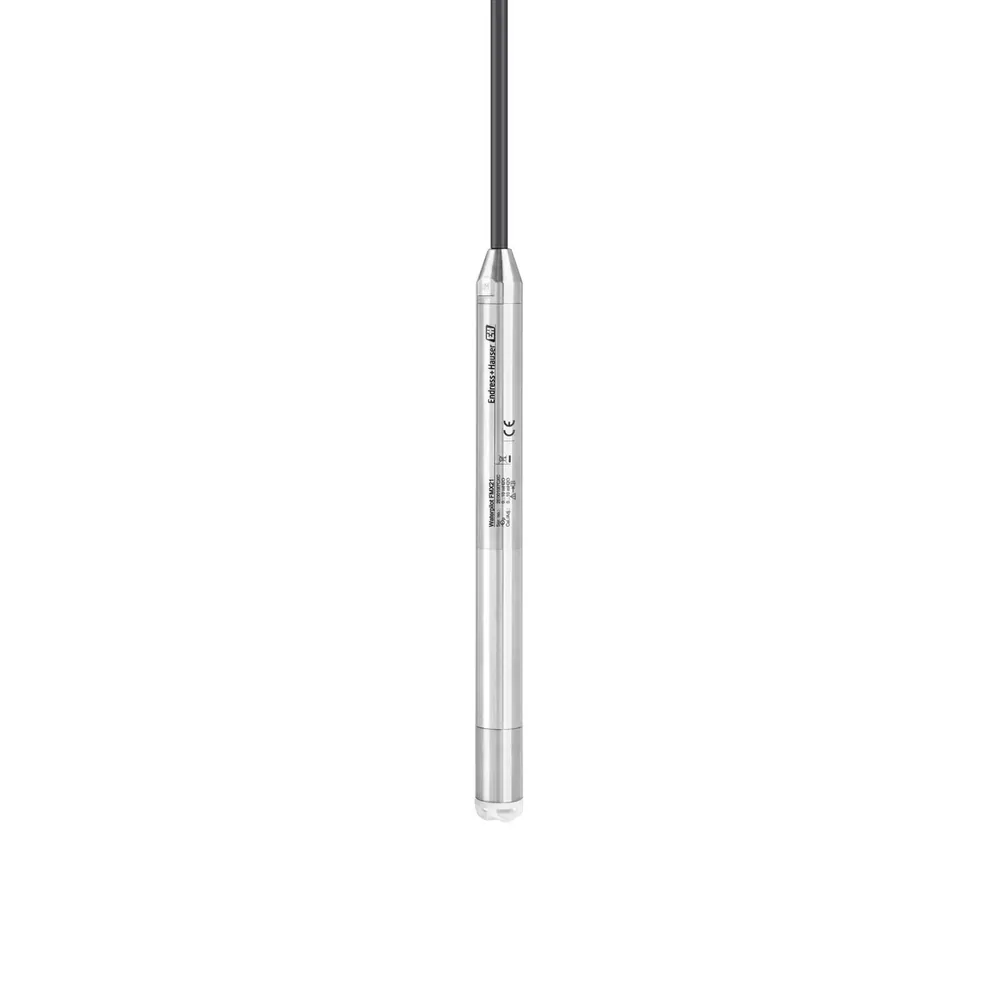

Endress+Hauser Waterpilot FMX21 Hydrostatic Level Probe
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
Reference ±0.2%; PLATINUM ±0.1%
Approvals
Drinking water KTW/NSF/ACS; ATEX/FM/CSA; marine GL/ABS/BV/DNV
Type
Hydrostatic level probe with oil-free ceramic measuring cell (Waterpilot FMX21)
Oem Note
Pipeline label FMX20 — no public FMX20 page; OEM successor FMX21 documented
Pressure Range
100 mbar…20 bar (1.5…300 psi); max distance ~200 m H2O
Process Temperature
−10…+70 °C (29 mm saltwater version 0…+50 °C)
| Parámetro | Valor |
|---|---|
| Accuracy | Reference ±0.2%; PLATINUM ±0.1% |
| Approvals | Drinking water KTW/NSF/ACS; ATEX/FM/CSA; marine GL/ABS/BV/DNV |
| Type | Hydrostatic level probe with oil-free ceramic measuring cell (Waterpilot FMX21) |
| Oem Note | Pipeline label FMX20 — no public FMX20 page; OEM successor FMX21 documented |
| Pressure Range | 100 mbar…20 bar (1.5…300 psi); max distance ~200 m H2O |
| Process Temperature | −10…+70 °C (29 mm saltwater version 0…+50 °C) |
| Versions | 22 mm drinking water; 42 mm wastewater; 29 mm saltwater/marine |
| Wetted Parts | 316L / ceramic / seals; plastic insulation on saltwater version; PE/PUR/FEP cable |
| Application | Wells/boreholes, tanks, wastewater, ballast water, environmental monitoring |
| Document | TI00431PEN Technical Information + BA00380PEN Operating Instructions |
| Design | Potted electronics; 2-filter pressure compensation; overload-resistant ceramic |
