Amprobe

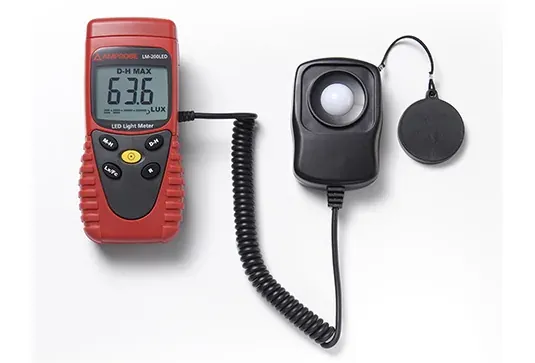

Amprobe LM-200LED Digital LED Light Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±3% to 2856 K incandescent; ±6% other visible / LED day-white corrected
Display
2000-count 3-1/2 digit LCD
Lux Range
200 / 2,000 / 20,000 / 200,000 Lux
Fc Range
20 / 200 / 2,000 / 20,000 fc
Sensor
Silicon photodiode and filter; LED-optimized indoor use
Functions
Data hold, Max hold, zero function, cosine correction
| Parámetro | Valor |
|---|---|
| Accuracy | ±3% to 2856 K incandescent; ±6% other visible / LED day-white corrected |
| Display | 2000-count 3-1/2 digit LCD |
| Lux Range | 200 / 2,000 / 20,000 / 200,000 Lux |
| Fc Range | 20 / 200 / 2,000 / 20,000 fc |
| Sensor | Silicon photodiode and filter; LED-optimized indoor use |
| Functions | Data hold, Max hold, zero function, cosine correction |
| Power | 9 V NEDA 1604 / IEC 6F22; ~200 hours; APO ~6 min |
| Dimensions Base | 5.1 × 2.5 × 1.5 in (130 × 63 × 38 mm) |
| Dimensions Sensor | 3.2 × 2.2 × 1.1 in (80 × 55 × 29 mm) |
| Weight | 0.48 lb (220 g) including battery |
| Agency | EMC EN 61326-1 |
