AEMC

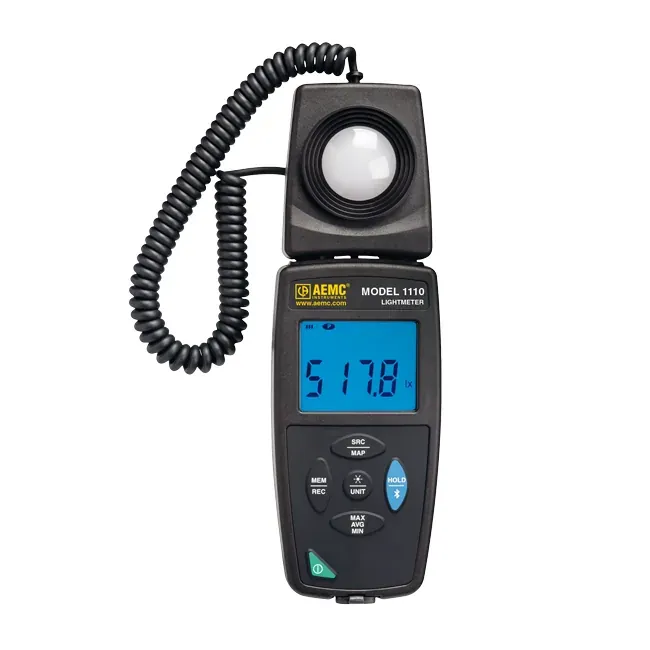

AEMC CA1110 Light Meter Data Logger
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Protection
IP50 (USB closed, sensor cap on)
Communication
USB 2.0 and Bluetooth
Approvals
EN 61326-1; IEC 61010-1
Catalog Number
2121.71
Measuring Range Lux
0.1 to 200,000 lx
Measuring Range Fc
0.01 to 18,580 fc
| Parámetro | Valor |
|---|---|
| Protection | IP50 (USB closed, sensor cap on) |
| Communication | USB 2.0 and Bluetooth |
| Approvals | EN 61326-1; IEC 61010-1 |
| Catalog Number | 2121.71 |
| Measuring Range Lux | 0.1 to 200,000 lx |
| Measuring Range Fc | 0.01 to 18,580 fc |
| Sensor | Detachable silicon Class C lightmeter per NF C 42-710 |
| Accuracy Incandescent | ±3% of reading (default) |
| Accuracy Led | ±6% of reading (3000–6000 K); ±4% with LED compensation @ 4000 K |
| Accuracy Fluorescent | ±9% of reading; ±4% with compensation (F11 4000 K) |
| Memory | 1,000,000 measurements (non-volatile ~4–8 MB class) |
| Sampling Rate | Programmable 1 s to 1 hr intervals |
| Power Source | 3×1.5 V AA or USB (micro-USB) |
| Operating Temperature | -10 to 60 °C (14 to 140 °F) |
| Case Dimensions | 150 x 72 x 32 mm |
| Weight | 345 g with batteries |
| Map Mode | MAP lighting-profile mode saves surface map in one file |
