Alliance Sensors Group

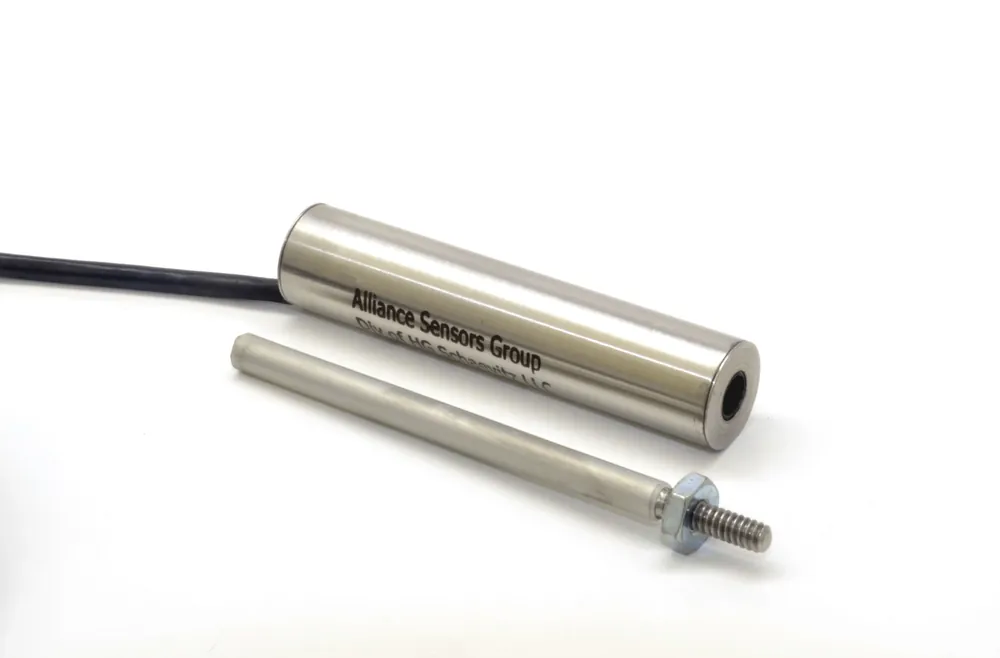

Alliance Sensors Group LZ-13 Series LVIT Miniature Linear Position Sensor
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
Contactless LVIT miniature linear position sensor (LZ-13 Series)
Measuring Ranges
2.5 to 200 mm (0.1 to 8 in) full scale (model-dependent)
Linearity Error
±0.15% of FSO typical
Housing
12.7 mm (0.5 in) diameter stainless steel body
Ingress Protection
IEC IP-67
Outputs
DC voltage / current LVIT outputs (see datasheet)
| Parámetro | Valor |
|---|---|
| Type | Contactless LVIT miniature linear position sensor (LZ-13 Series) |
| Measuring Ranges | 2.5 to 200 mm (0.1 to 8 in) full scale (model-dependent) |
| Linearity Error | ±0.15% of FSO typical |
| Housing | 12.7 mm (0.5 in) diameter stainless steel body |
| Ingress Protection | IEC IP-67 |
| Outputs | DC voltage / current LVIT outputs (see datasheet) |
| Feature | ASG SenSet™ field recalibration; axial cable/connector options |
| Operating Temperature | Industrial LVIT temperature range (see LZ-13 datasheet) |
| Related | Miniature sibling to LR-19 / LZ family LVIT sensors |
| Resolution | High resolution contactless LVIT (datasheet) |
