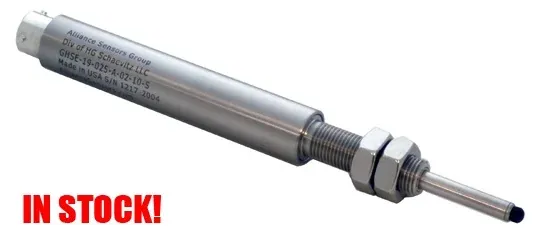

Alliance Sensors Group GHS-19 Series LVIT Linear Position Sensor
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
Spring-loaded LVIT linear position / gaging probe (GHS-19)
Measuring Ranges
6.35 to 100 mm (0.25 to 4.0 in) full scale nominal
Body
0.75 in (19 mm) OD aluminum or stainless; 1/2-20 UNF-2A nose thread 1.5 in
Linearity
±0.15% FSO typical, ±0.25% FSO max
Resolution
0.025% of FSO
Outputs
0-5 V / 0.5-4.5 V / 0-10 V / 4-20 mA (3-wire) options
| Parámetro | Valor |
|---|---|
| Type | Spring-loaded LVIT linear position / gaging probe (GHS-19) |
| Measuring Ranges | 6.35 to 100 mm (0.25 to 4.0 in) full scale nominal |
| Body | 0.75 in (19 mm) OD aluminum or stainless; 1/2-20 UNF-2A nose thread 1.5 in |
| Linearity | ±0.15% FSO typical, ±0.25% FSO max |
| Resolution | 0.025% of FSO |
| Outputs | 0-5 V / 0.5-4.5 V / 0-10 V / 4-20 mA (3-wire) options |
| Connector | PT02-10-6P 6-pin |
| Tip Force | Max tip contact force 1 lbf; No. 9 contact tip |
| Protection | IEC IP-67 terminations |
| Feature | SenSet field recalibration; contactless LVIT sensing |
