Asecos

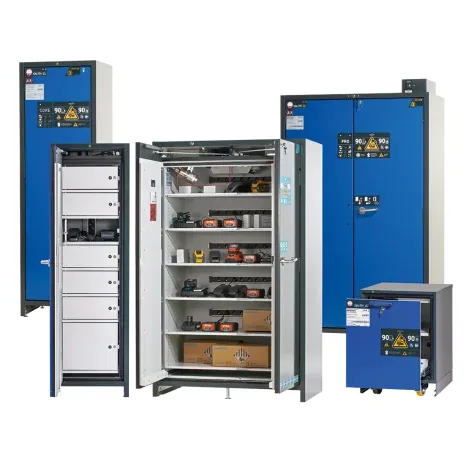

Asecos Model ION-S Lithium-ION Battery Storage Cabinet
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
Type 90 fire-resistant lithium-ion battery safety storage cabinet (ION-LINE / Model ION-S family)
Safety Levels
CORE / PRO / ULTRA (STORE passive or CHARGE active variants)
Fire Resistance
90-minute fire protection inside-out and outside-in; GS-certified fire detection & alarm forwarding
Monitoring
Smoke detection; temperature sensing; optional fire suppression; alarm forwarding / relay modules
Example Model
IO90.195.120 class — ext. ~1193 × 615 × 1953–2114 mm; weight ~424–490 kg empty
Max Load
Up to ~600 kg cabinet load (model-dependent); thermally separated storage levels
| Parámetro | Valor |
|---|---|
| Type | Type 90 fire-resistant lithium-ion battery safety storage cabinet (ION-LINE / Model ION-S family) |
| Safety Levels | CORE / PRO / ULTRA (STORE passive or CHARGE active variants) |
| Fire Resistance | 90-minute fire protection inside-out and outside-in; GS-certified fire detection & alarm forwarding |
| Monitoring | Smoke detection; temperature sensing; optional fire suppression; alarm forwarding / relay modules |
| Example Model | IO90.195.120 class — ext. ~1193 × 615 × 1953–2114 mm; weight ~424–490 kg empty |
| Max Load | Up to ~600 kg cabinet load (model-dependent); thermally separated storage levels |
| Extraction | DN75–DN100 extraction air connection on PRO/ULTRA; transport base included |
| Applications | Passive storage and/or protected charging of lithium-ion batteries |
| Certifications | Type 90 safety storage cabinet; real fire test / GS concepts per asecos ION-LINE literature |
