Endress+Hauser

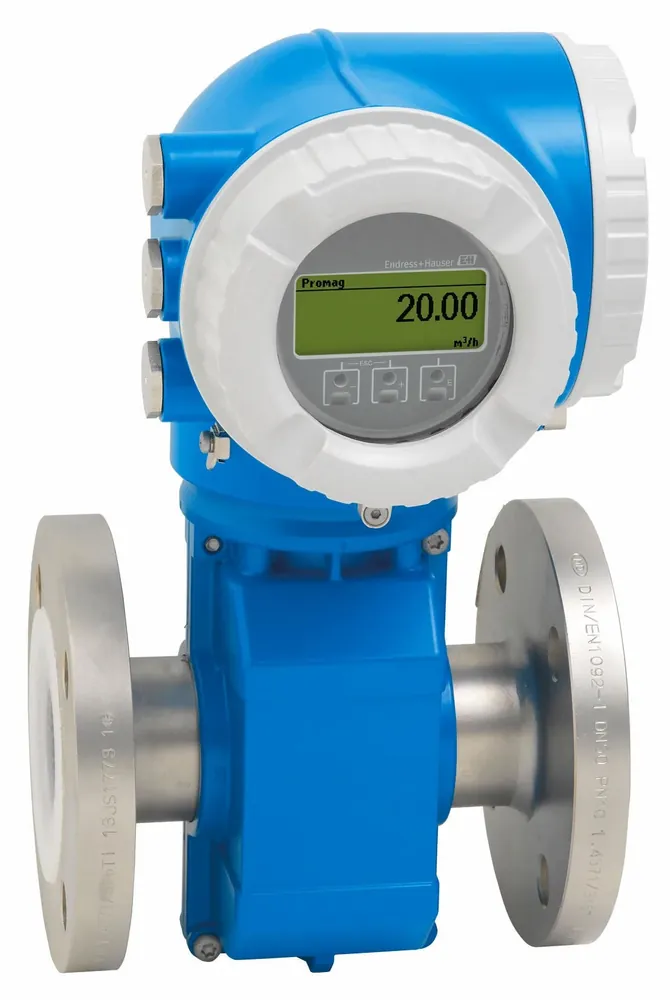

Endress+Hauser Proline Promag P 300 Electromagnetic Flow Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Typically v = 0.01 to 10 m/s (0.03 to 33 ft/s) with specified accuracy; DN sizes per TI tables
Accuracy
Standard ±0.5% o.r. ±1 mm/s; optional ±0.2% o.r. ±2 mm/s (volume flow)
Accuracy % FS
0.5
Output
4–20 mA HART; pulse/frequency/switch; optional Ethernet, PROFIBUS, PROFINET, Modbus, FOUNDATION Fieldbus per transmitter options
Supply
DC or AC transmitter supply options per TI electrical section
Process connection
Flanges EN/ASME/JIS; lap-joint and other process connections per TI
| Parámetro | Valor |
|---|---|
| Measuring range | Typically v = 0.01 to 10 m/s (0.03 to 33 ft/s) with specified accuracy; DN sizes per TI tables |
| Accuracy | Standard ±0.5% o.r. ±1 mm/s; optional ±0.2% o.r. ±2 mm/s (volume flow) |
| Accuracy % FS | 0.5 |
| Output | 4–20 mA HART; pulse/frequency/switch; optional Ethernet, PROFIBUS, PROFINET, Modbus, FOUNDATION Fieldbus per transmitter options |
| Supply | DC or AC transmitter supply options per TI electrical section |
| Process connection | Flanges EN/ASME/JIS; lap-joint and other process connections per TI |
| Electrical connection | Cable entries on compact transmitter; M12/terminals per option |
| Wetted parts | PTFE or PFA liner; electrode materials (1.4435/316L, Alloy C22, tantalum, platinum, etc.) per order |
| Housing | Compact transmitter housing (aluminum/SST options) |
| Protection | IP66/67 (transmitter); sensor IP67/IP68 options |
| Media temperature | Depends on liner: PTFE/PFA process temperature tables in TI |
| Ambient temperature | Transmitter ambient limits per TI |
| Pressure type | other |
| Display | Local display/operating elements on Promag 300 transmitter |
| Communication | HART; optional fieldbuses/Ethernet-APL as ordered |
| Approvals | ATEX/IECEx/cCSAus options; SIL capability options; PED |
| Hazardous area | Ex approvals by order code |
| Mounting | Inline electromagnetic sensor with compact Promag 300 transmitter |
| Notes | Specs from Endress+Hauser TI01224D (Promag P 300). Chemical/process magmeter with Heartbeat Technology. |
| Overpressure Limit | PN 40 / Class 300 / 20K class options by size |
