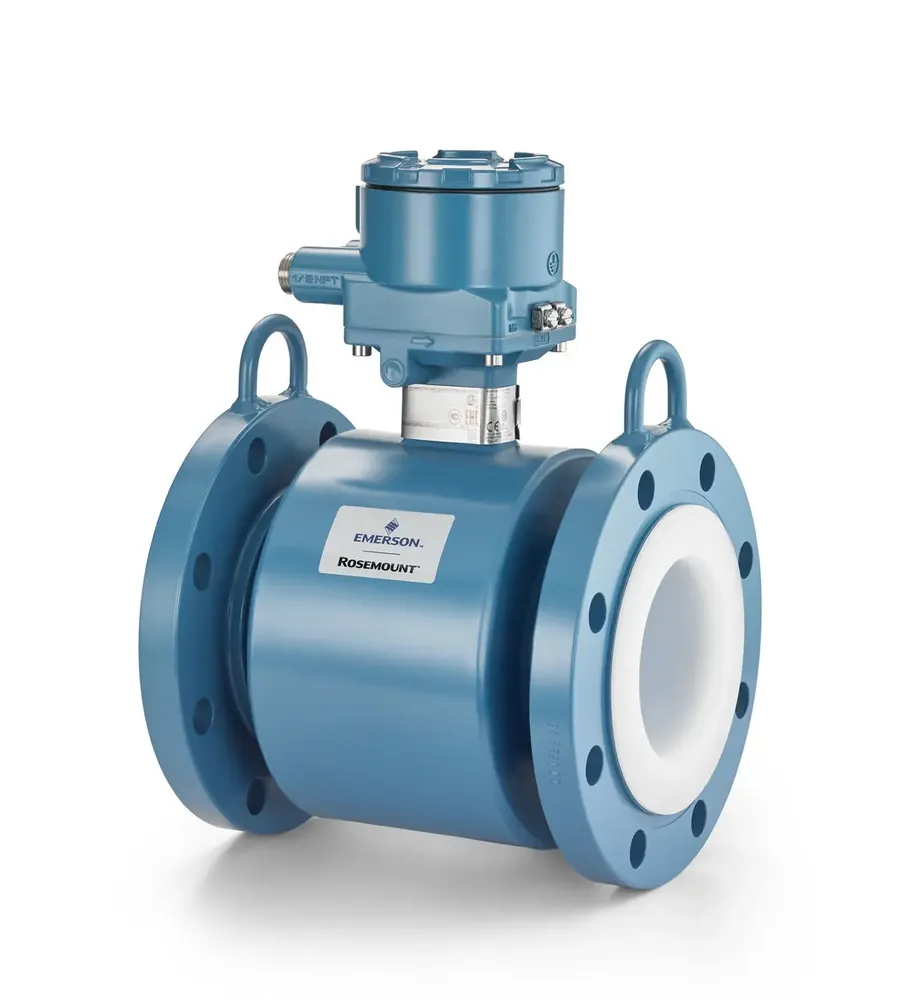

Rosemount 8705 Flanged Magnetic Flow Meter Sensors
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Line sizes ½–36 in (15–900 mm); volumetric flow velocity typically to ~39 ft/s (12 m/s) with paired transmitter
Accuracy
Up to 0.15% of volumetric flow rate over 13:1 turndown; 0.25% over 40:1 (with matched transmitter/high-accuracy option)
Accuracy % FS
0.25
Output
Sensor coil/electrode signals to Rosemount 8700-series transmitters (4–20 mA HART, Fieldbus, etc. on transmitter)
Supply
Powered via paired Rosemount magnetic flow transmitter
Process connection
Flanged ASME Class 150–2500; DIN PN 10–40; AS 2129; AWWA C207 (size-dependent)
| Parámetro | Valor |
|---|---|
| Measuring range | Line sizes ½–36 in (15–900 mm); volumetric flow velocity typically to ~39 ft/s (12 m/s) with paired transmitter |
| Accuracy | Up to 0.15% of volumetric flow rate over 13:1 turndown; 0.25% over 40:1 (with matched transmitter/high-accuracy option) |
| Accuracy % FS | 0.25 |
| Output | Sensor coil/electrode signals to Rosemount 8700-series transmitters (4–20 mA HART, Fieldbus, etc. on transmitter) |
| Supply | Powered via paired Rosemount magnetic flow transmitter |
| Process connection | Flanged ASME Class 150–2500; DIN PN 10–40; AS 2129; AWWA C207 (size-dependent) |
| Electrical connection | Removable/replaceable terminal block; conduit entries per coil housing configuration |
| Wetted parts | Liners: PTFE, PFA, ETFE, PEX, polyurethane, neoprene, Linatex; electrodes: 316L, nickel alloy, Pt, Ta, Ti |
| Housing | Welded sealed coil housing (carbon steel / SST fabrication) |
| Protection | IP68 submergence protection (recommended with sealed cable glands) |
| Media temperature | Depends on liner material selection (see PDS liner tables) |
| Ambient temperature | Per sensor/transmitter ambient tables in PDS/manual |
| Pressure type | other |
| Display | none on sensor (display on paired transmitter) |
| Communication | Via paired 8700 Series transmitter protocols |
| Approvals | Hazardous-location approvals by option code; interchangeable with 8700 Series transmitters |
| Hazardous area | Approvals by model option (N5/K5/N6/KU etc.) |
| Mounting | Inline flanged magmeter sensor; compact or remote transmitter mount |
| Notes | Specs from Emerson PDS 00813-0100-4444 (8700M platform covering 8705 flanged sensor). Sensor-only SKU; accuracy stated with matched transmitter. |
| Overpressure Limit | Flange rating limited (Class/PN by size) |
