Danatronics

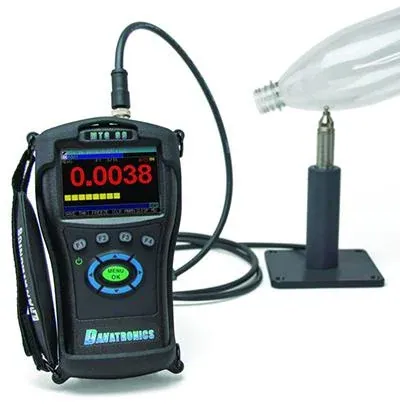

Danatronics MTG-99 Magnetic Thickness Gauge
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Display
3.5 in color TFT 320x240 sunlight-readable
Type
Portable Hall-effect magnetic thickness gauge for non-ferrous materials (MTG-99)
Thickness Range
0.0001 to 1.00 in (0.001 to 25.4 mm) with access to both sides
Dimensions Weight
7.25 x 4.00 x 2.00 in; 1.15 lb with Li-ion battery
Battery
Li-ion about 16 h; USB charger; AC 100-240 V
Protection
Designed for IP67
| Parámetro | Valor |
|---|---|
| Display | 3.5 in color TFT 320x240 sunlight-readable |
| Type | Portable Hall-effect magnetic thickness gauge for non-ferrous materials (MTG-99) |
| Thickness Range | 0.0001 to 1.00 in (0.001 to 25.4 mm) with access to both sides |
| Dimensions Weight | 7.25 x 4.00 x 2.00 in; 1.15 lb with Li-ion battery |
| Battery | Li-ion about 16 h; USB charger; AC 100-240 V |
| Protection | Designed for IP67 |
| Datalogger | Internal alphanumeric logger; MicroSD up to 32 GB; Data XL Excel export |
| Alarm | High/low alarms with vibrate; min/max capture at 60 Hz |
| Io | USB 2.0; optional RS-232 and Bluetooth |
| Probe | PR-1 straight probe 3.25 in long x 0.827 in dia |
| Operating Temp | -4 to 122 F (-20 to 50 C) |
| Document | Danatronics MTG 99 Hall Effect Thickness Gage brochure |
