Alicat Scientific

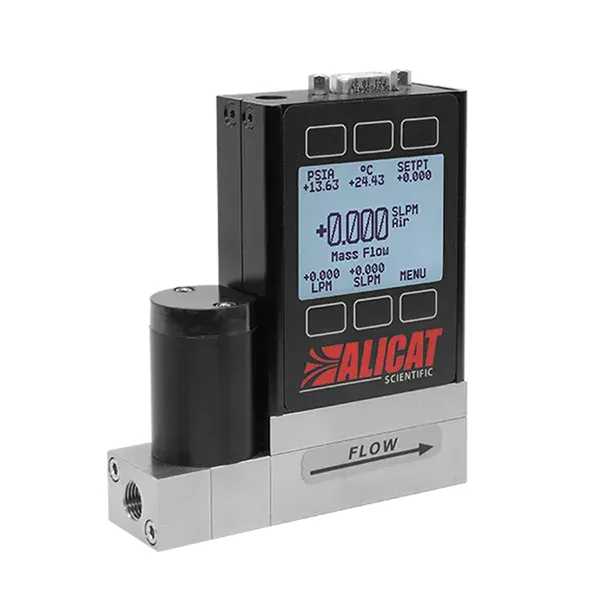

Alicat Scientific MC Series Mass Flow Controllers
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
Standard ±0.8% of reading and ±0.2% FS; high accuracy (≤500 SLPM) ±0.4% rdg and ±0.2% FS
Wetted parts
302/303/304/316L/430FR stainless (MCP) or 410 SS + Delrin/nylon (MCR); FKM, ceramic, glass, gold, epoxy, silicone
Display
Monochrome LCD or color TFT; mass flow, volumetric flow, temperature, setpoint, pressure
Flow Range
Series spans low to 12,000 SLPM; high-flow sheet 50–12,000 SLPM full scale
Repeatability
±0.2% of reading and ±0.02% of full scale (2σ)
Control Range
MCP 0.01–100% FS (10,000:1); MCR/MCRH 0.2–100% FS (500:1)
| Parámetro | Valor |
|---|---|
| Accuracy | Standard ±0.8% of reading and ±0.2% FS; high accuracy (≤500 SLPM) ±0.4% rdg and ±0.2% FS |
| Wetted parts | 302/303/304/316L/430FR stainless (MCP) or 410 SS + Delrin/nylon (MCR); FKM, ceramic, glass, gold, epoxy, silicone |
| Display | Monochrome LCD or color TFT; mass flow, volumetric flow, temperature, setpoint, pressure |
| Flow Range | Series spans low to 12,000 SLPM; high-flow sheet 50–12,000 SLPM full scale |
| Repeatability | ±0.2% of reading and ±0.02% of full scale (2σ) |
| Control Range | MCP 0.01–100% FS (10,000:1); MCR/MCRH 0.2–100% FS (500:1) |
| Operating Pressure | 11.5–160 PSIA |
| Operating Temperature | −10–60 °C (ambient and gas) |
| Valve Function | Normally closed |
| Control Response | MCP as fast as 30 ms T63; MCR/MCRH as fast as 100 ms T63 (user-adjustable) |
| Ingress Protection | IP40 |
| Communications | RS-232/Modbus RTU default; optional RS-485, Modbus TCP/IP, DeviceNet, EtherCAT, EtherNet/IP, Profibus, PROFINET, IO-Link |
| Analog Io | 4–20 mA, 0–5 Vdc, 1–5 Vdc, 0–10 Vdc |
| Power Requirements | Per valve/output option; typically 12–24 Vdc class for controllers |
| Gas Select | 98 user-selectable gases; STP/NTP configurable |
