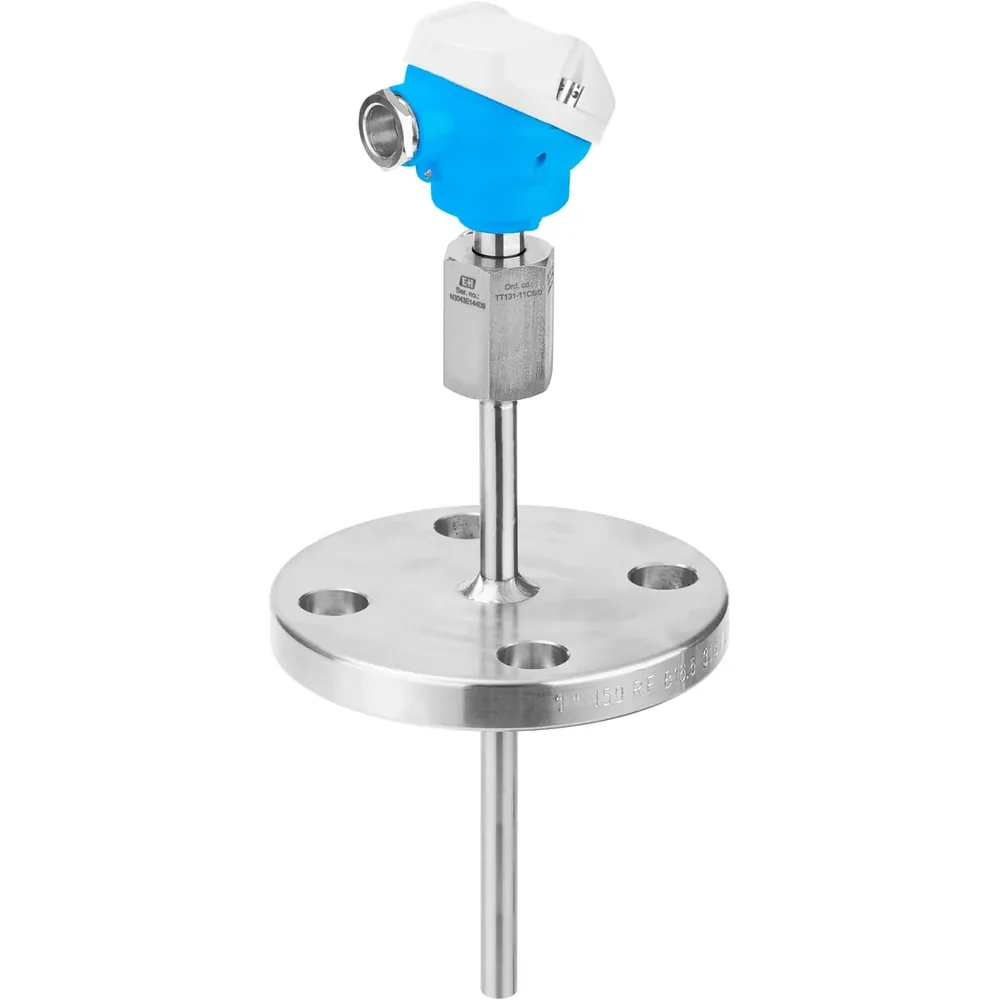

Endress+Hauser iTHERM ModuLine TM121 Industrial Modular Thermometer

SKU · 141128 · iTHERM ModuLine TM121 · Marca: Endress+Hauser

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Measuring range

Pt100 TF −50 to +200 °C; TC type K up to +650 °C (family up to +1100 °C type K / +750 °C type J per TI01455T)

Accuracy

Pt100 per IEC 60751 Class A/B (class depends on sensor option); TC standard classes per IEC 60584

Output

Direct-wired sensor or head transmitter 4–20 mA / HART / other common protocols (iTEMP family options)

Supply

Depends on selected head transmitter (typically 4–20 mA loop)

Process connection

Wide range of process connections; welded thermowell modular assembly

Protection

Up to IP68

Parámetro	Valor
Measuring range	Pt100 TF −50 to +200 °C; TC type K up to +650 °C (family up to +1100 °C type K / +750 °C type J per TI01455T)
Accuracy	Pt100 per IEC 60751 Class A/B (class depends on sensor option); TC standard classes per IEC 60584
Output	Direct-wired sensor or head transmitter 4–20 mA / HART / other common protocols (iTEMP family options)
Supply	Depends on selected head transmitter (typically 4–20 mA loop)
Process connection	Wide range of process connections; welded thermowell modular assembly
Protection	Up to IP68
Approvals	For use in non-hazardous areas (basic TM121)
Mounting	Process thermowell / modular insert + terminal head
Sensor type	Metric modular RTD/TC industrial thermometer with welded thermowell (iTHERM ModuLine TM121)
Notes	Specs from Endress+Hauser TI01455TEN (2025-05-12) and BA01915TEN. Pressure range up to 50 bar (725 psi).
