Watlow

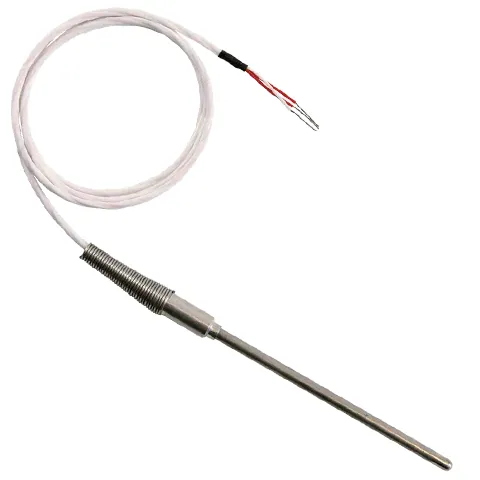

Watlow RF Style RTD
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Family −200 to 650 °C (−328 to 1200 °F)
Accuracy
DIN Class A (±0.06%) or Class B (±0.12%) options
Process connection
Thermowell / compression fitting ready (application dependent)
Sensor type
Style RF flexible mineral-insulated RTD with metal transition
Element
100 Ω two- or three-wire RTD elements typical
Sheath Diameter
0.125 / 0.188 / 0.250 in sheath diameter options
| Parámetro | Valor |
|---|---|
| Measuring range | Family −200 to 650 °C (−328 to 1200 °F) |
| Accuracy | DIN Class A (±0.06%) or Class B (±0.12%) options |
| Process connection | Thermowell / compression fitting ready (application dependent) |
| Sensor type | Style RF flexible mineral-insulated RTD with metal transition |
| Element | 100 Ω two- or three-wire RTD elements typical |
| Sheath Diameter | 0.125 / 0.188 / 0.250 in sheath diameter options |
| Sheath Material | Stainless steel sheath (style-dependent) |
| Transition | Stainless-steel transitions filled with 260 °C epoxy; coiled-spring strain relief |
| Construction | Flexible MI cable construction for routing in tight spaces |
| Insulation Standard | Insulation resistance exceeds DIN-IEC-751 |
| Transmitter | Optional head-mounted transmitter assemblies in related Watlow styles |
| Applications | Process piping, exhaust, plastics, food equipment, general industrial temperature |
| Special Features | Flexible MI with coiled spring strain relief at transition |
