Kaye

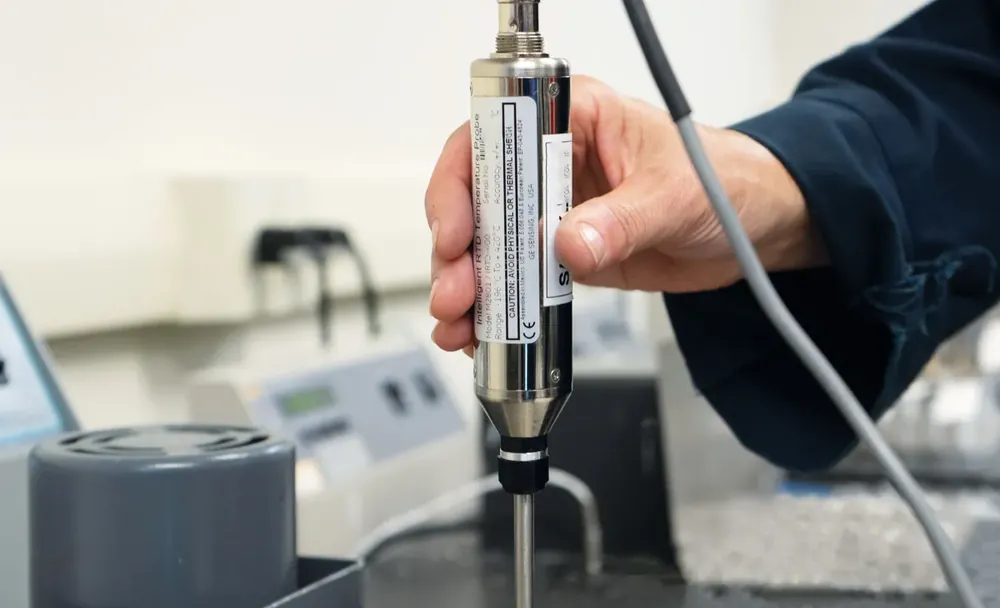

Kaye IRTD-400 Intelligent RTD Temperature Standard
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±0.025 °C over range
Type
Intelligent RTD secondary temperature standard (IRTD-400)
Temperature Range
−196 °C to 420 °C
Resolution
0.001 °C
Sensor Element
Precision platinum RTD (200 Ω class)
Sheath
Inconel; approx. 455 mm × 6.35 mm (18 in × 0.25 in)
| Parámetro | Valor |
|---|---|
| Accuracy | ±0.025 °C over range |
| Type | Intelligent RTD secondary temperature standard (IRTD-400) |
| Temperature Range | −196 °C to 420 °C |
| Resolution | 0.001 °C |
| Sensor Element | Precision platinum RTD (200 Ω class) |
| Sheath | Inconel; approx. 455 mm × 6.35 mm (18 in × 0.25 in) |
| Overall Length | Approx. 600 mm (23.75 in) |
| Calibration | NVLAB / DAkkS / ISO 17025 factory calibration certificate |
| Integration | Works with Kaye Validator AVS, ValProbe RT, RF ValProbes, and Kaye baths |
| Ambient | 0–60 °C; 0–95% RH non-condensing |
