Rosemount
Rosemount 214C RTD Temperature Sensor
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
RT thin-film −50…+450 °C; RH high-temp thin-film −60…+600 °C; RW wire-wound −196…+600 °C
Accuracy
IEC 60751 Class A or Class B (option); Callendar-Van Dusen calibration available
Accuracy class
IEC 60751 Class A/B
Output
Resistance (Pt100); pairs with Rosemount temperature transmitters
Process connection
Spring-loaded / compact spring-loaded styles for thermowell; sensor OD ¼ in (6 mm) nominal
Electrical connection
24 AWG FEP-insulated lead wires, color-coded per IEC 60751; single or dual element
| Parámetro | Valor |
|---|---|
| Measuring range | RT thin-film −50…+450 °C; RH high-temp thin-film −60…+600 °C; RW wire-wound −196…+600 °C |
| Accuracy | IEC 60751 Class A or Class B (option); Callendar-Van Dusen calibration available |
| Accuracy class | IEC 60751 Class A/B |
| Output | Resistance (Pt100); pairs with Rosemount temperature transmitters |
| Process connection | Spring-loaded / compact spring-loaded styles for thermowell; sensor OD ¼ in (6 mm) nominal |
| Electrical connection | 24 AWG FEP-insulated lead wires, color-coded per IEC 60751; single or dual element |
| Housing | Sensor sheath; optional connection heads when assembled to transmitters/heads |
| Ambient temperature | Per connection head / transmitter assembly when used |
| Display | none (sensor) |
| Approvals | Hazardous location approvals by option code (ATEX/IECEx/FM/CSA etc.) |
| Hazardous area | Multiple hazardous-location product approvals by model option |
| Mounting | Thermowell spring-loaded / compact spring-loaded |
| Sensor type | Pt100 RTD α=0.00385 (thin-film RT/RH or wire-wound RW) |
| Notes | Specs from Emerson PDS 00813-0500-2654 Rev HH (Rosemount 214C Temperature Sensors). Manual/QSG 00825-0400-2654. |
| Stem Diameter | ¼ in (6 mm) nominal sheath OD |

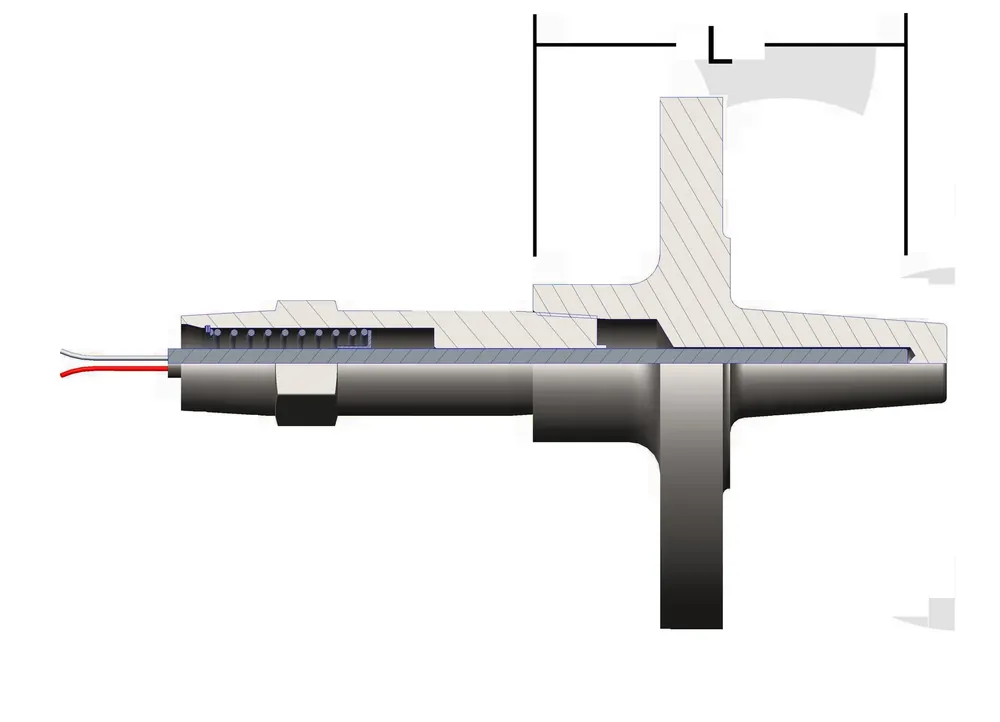

| Stem Length | Configurable insertion length L = head length H + immersion U (with 114C) |
| Immersion Length | Configurable per model code / thermowell |
| Sheath Material | Per PDS material options (typically 316 SST sheath) |
| Response Time | Per IEC 60751 water-flow tests in QSG/PDS (element-type dependent) |
| Head Type | Sensor only or assemble-to Rosemount transmitter/connection head |
| Wiring | 2-/3-/4-wire RTD lead configurations per order |
