Rosemount

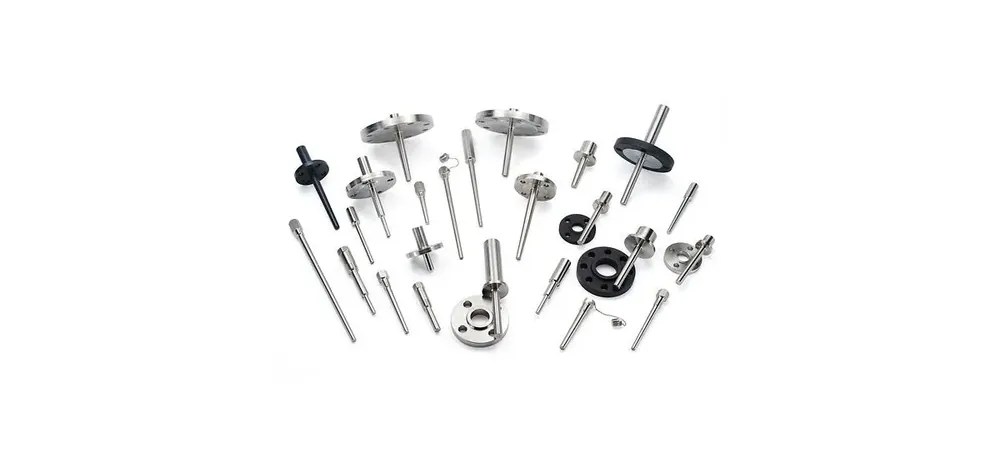

Rosemount 114C Thermowells
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Process connection
Threaded, flanged, Van Stone, or welded mounting configurations
Ambient temperature
Process limits depend on material and connection rating (see PDS tables)
Approvals
ASME PTC 19.3 TW
Product Form
Solid bar-stock thermowell isolating temperature sensors from process flow/pressure/corrosion
Stem Styles
Straight, tapered, or stepped stems; flexible root/tip/bore/tip-thickness modifiers
Materials
Wide material selection from stainless steels to duplex and Alloy C-276 for process compatibility
| Parámetro | Valor |
|---|---|
| Process connection | Threaded, flanged, Van Stone, or welded mounting configurations |
| Ambient temperature | Process limits depend on material and connection rating (see PDS tables) |
| Approvals | ASME PTC 19.3 TW |
| Product Form | Solid bar-stock thermowell isolating temperature sensors from process flow/pressure/corrosion |
| Stem Styles | Straight, tapered, or stepped stems; flexible root/tip/bore/tip-thickness modifiers |
| Materials | Wide material selection from stainless steels to duplex and Alloy C-276 for process compatibility |
| Design Standard | Meets ASME PTC 19.3 TW wake-frequency design standard with flexible geometry |
| Bore | Configurable bore (d), root (A), and tip (B) diameters for sensor compatibility |
| Sensor Compatibility | Accepts RTD/thermocouple sensors for quick removal without process shutdown |
| Special Features | Bar-stock integrity; industry-standard configurations plus specials; material certification option Q8 |
| Documentation | Product Data Sheet 00813-0200-4952 Rev FC (June 2023) |
| Applications | Process vessels and piping requiring sensor isolation for calibration/replacement |
