Endress+Hauser

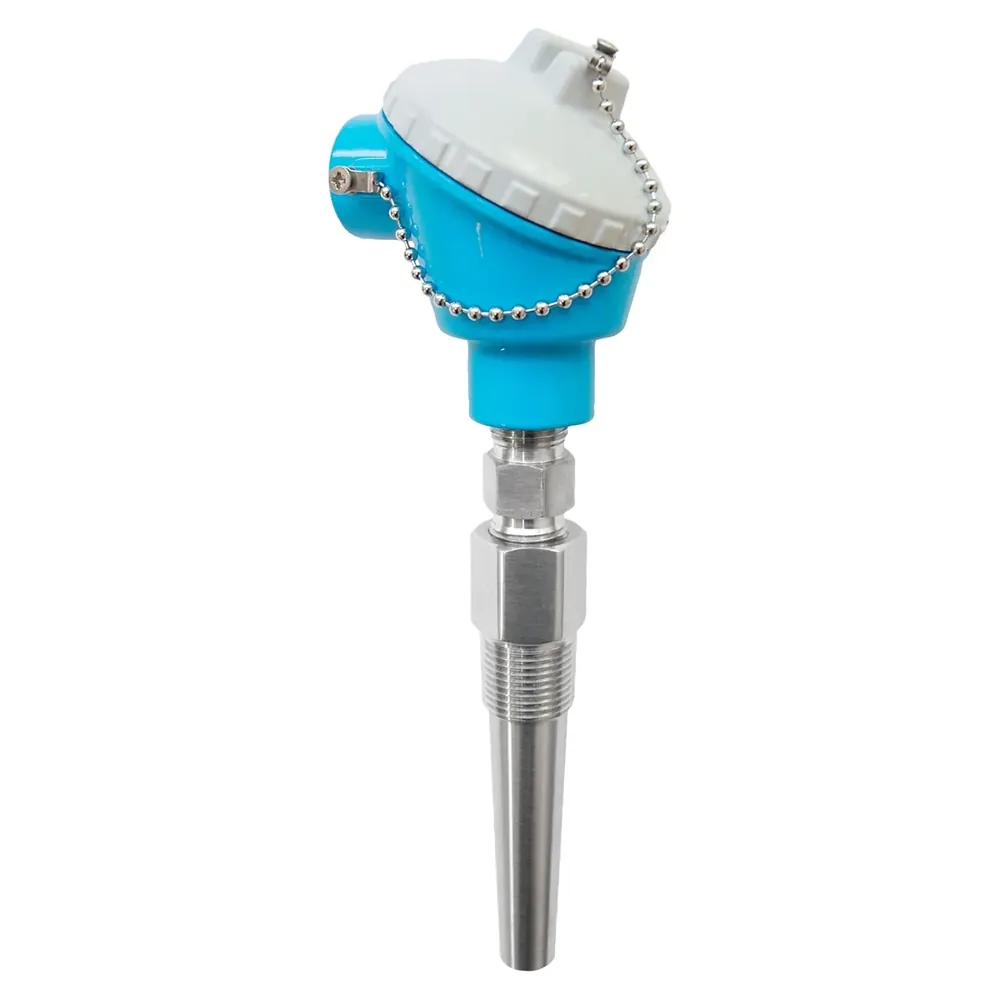

Endress+Hauser Modular TH13 RTD Thermometer in Threaded Thermowell
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Pt100 thin-film low range −50 to 200 °C (−58 to 392 °F); wire-wound / StrongSens options extend to approx. −200 to 600 °C / −50 to 500 °C depending on sensor code (TI00110R)
Accuracy
IEC 60751 Class A ±(0.15+0.002|t|) °C; Class B ±(0.3+0.005|t|) °C (sensor class per order code)
Output
Direct-wired RTD or head/field transmitter 4–20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus (iTEMP options)
Supply
Depends on selected transmitter (loop-powered 4–20 mA typical)
Process connection
Threaded thermowell (US-style modular RTD assembly); spring-loaded insert + enclosure
Ambient temperature
Ambient limits depend on head/transmitter option (see TI00110R §Ambient)
| Parámetro | Valor |
|---|---|
| Measuring range | Pt100 thin-film low range −50 to 200 °C (−58 to 392 °F); wire-wound / StrongSens options extend to approx. −200 to 600 °C / −50 to 500 °C depending on sensor code (TI00110R) |
| Accuracy | IEC 60751 Class A ±(0.15+0.002|t|) °C; Class B ±(0.3+0.005|t|) °C (sensor class per order code) |
| Output | Direct-wired RTD or head/field transmitter 4–20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus (iTEMP options) |
| Supply | Depends on selected transmitter (loop-powered 4–20 mA typical) |
| Process connection | Threaded thermowell (US-style modular RTD assembly); spring-loaded insert + enclosure |
| Ambient temperature | Ambient limits depend on head/transmitter option (see TI00110R §Ambient) |
| Approvals | Process industry RTD; option-dependent Ex/hygienic approvals |
| Mounting | Threaded thermowell process installation |
| Sensor type | Pt100 RTD assembly in barstock thermowell (TH13 family with TH14/TH15) |
| Notes | Specs from Endress+Hauser TI00110REN_1824-00 and KA00190R. Modular US-style TH13. |
