Endress+Hauser

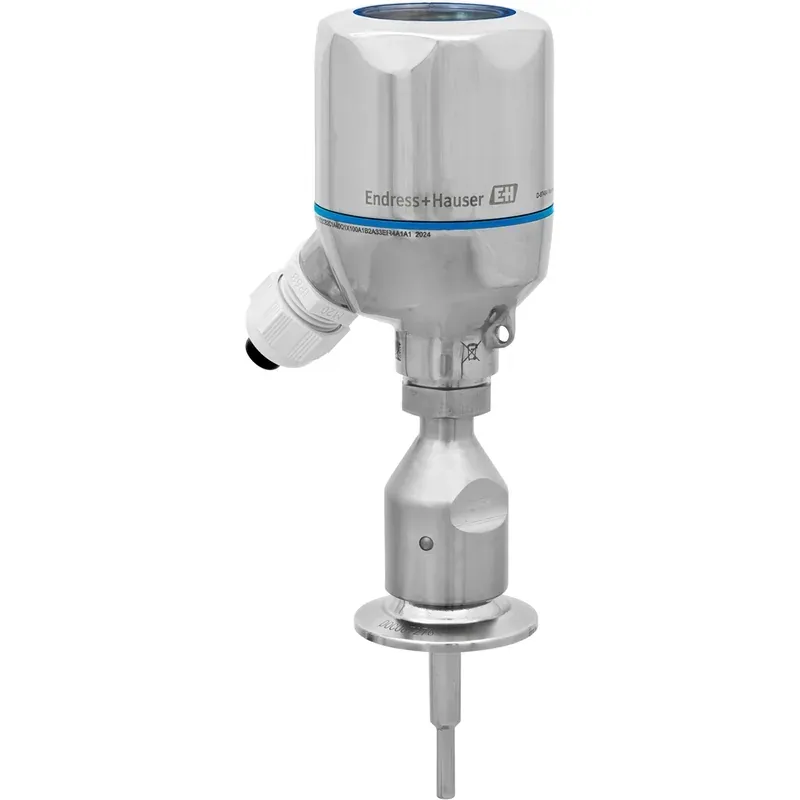

Endress+Hauser iTHERM ModuLine TM411 RTD Thermometer
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Pt100 −200 to +600 °C; StrongSens −50 to +500 °C; QuickSens −50 to +200 °C
Accuracy
Class A or Class AA per IEC 60751
Process connection
Clamp ISO 2852, DIN 11851/11864, Varivent, Ingold, SMS, Neumo, weld-in, and more
Protection
Up to IP69K
Approvals
ATEX; IECEx; CSA; FM; EAC Ex; JPN Ex; NEPSI; UKCA; SIL (transmitter)
Response Time
QuickSens t90 ≈ 1.5 s; StrongSens t90 ≈ 9.5 s (configuration dependent)
| Parámetro | Valor |
|---|---|
| Measuring range | Pt100 −200 to +600 °C; StrongSens −50 to +500 °C; QuickSens −50 to +200 °C |
| Accuracy | Class A or Class AA per IEC 60751 |
| Process connection | Clamp ISO 2852, DIN 11851/11864, Varivent, Ingold, SMS, Neumo, weld-in, and more |
| Protection | Up to IP69K |
| Approvals | ATEX; IECEx; CSA; FM; EAC Ex; JPN Ex; NEPSI; UKCA; SIL (transmitter) |
| Response Time | QuickSens t90 ≈ 1.5 s; StrongSens t90 ≈ 9.5 s (configuration dependent) |
| Process Pressure | Up to 40 bar (580 psi) at 20 °C |
| Sensor | Thin-film RTD QuickSens/StrongSens or 2×Pt100 wire-wound inserts; MI flexible inserts |
| Thermowell | Optional thermowell / Tee / elbow; OD 6.0 / 9.0 / 12.7 mm; 1.4435 / 316L |
| Surface Finish | Ra 0.76 / 0.38 µm; electropolished options |
| Transmitter | Head transmitter 4–20 mA, HART, PROFIBUS PA, FOUNDATION Fieldbus; Bluetooth parametrization |
| Hygiene | 3-A; EHEDG; ASME BPE; FDA; TSE |
| Special Features | iTHERM QuickNeck tool-free insert removal; modular hygienic metric design for food & life sciences |
