Endress+Hauser
Endress+Hauser iTHERM ModuLine TM131 Industrial Modular Thermometer
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
−200 to +1100 °C (−328 to +2012 °F) depending on RTD/TC sensor option
Accuracy
Pt100 per IEC 60751 Class A/B (option-dependent); TC classes per IEC 60584
Output
Direct-wired sensor or head transmitter 4–20 mA / HART / common protocols (iTEMP family options)
Process connection
Wide range of process connections; modular welded thermowell assembly
Protection
Up to IP68 depending on terminal head/option
Approvals
Intrinsically safe / hazardous-area options available (TM131 family)
| Parámetro | Valor |
|---|---|
| Measuring range | −200 to +1100 °C (−328 to +2012 °F) depending on RTD/TC sensor option |
| Accuracy | Pt100 per IEC 60751 Class A/B (option-dependent); TC classes per IEC 60584 |
| Output | Direct-wired sensor or head transmitter 4–20 mA / HART / common protocols (iTEMP family options) |
| Process connection | Wide range of process connections; modular welded thermowell assembly |
| Protection | Up to IP68 depending on terminal head/option |
| Approvals | Intrinsically safe / hazardous-area options available (TM131 family) |
| Mounting | Process thermowell / modular insert + terminal head |
| Sensor type | Metric modular RTD/TC industrial thermometer with welded thermowell (iTHERM ModuLine TM131) |

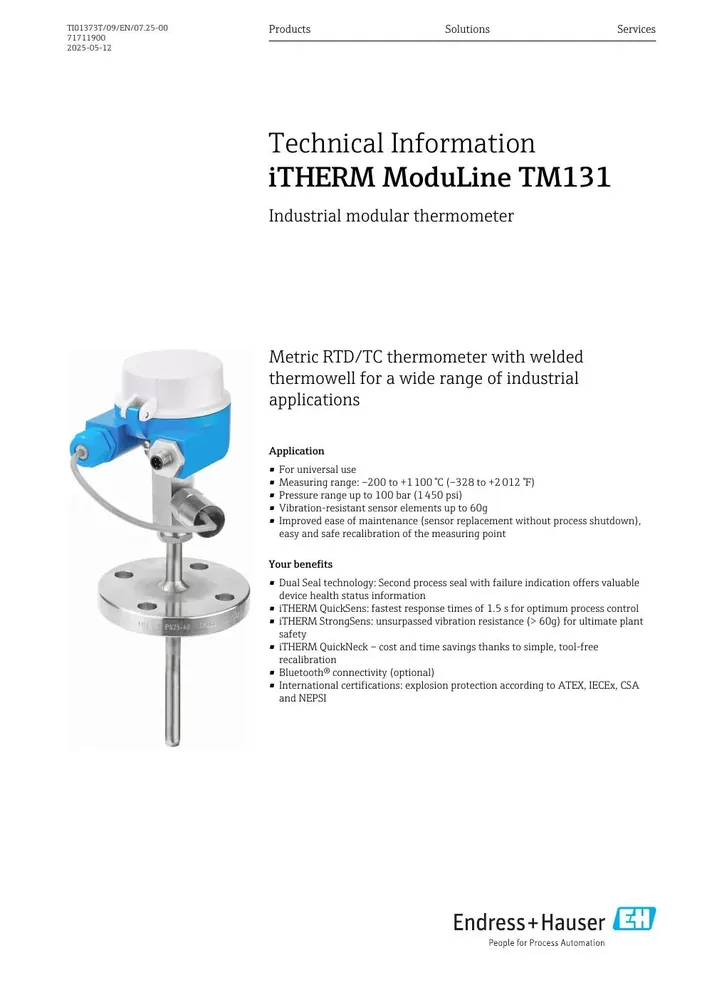

| Notes | Specs from Endress+Hauser TI01373TEN (2025-05-12) and BA01915TEN (ModuLine family operating instructions). |
| Pressure Range | Up to 100 bar (1450 psi) |
| Vibration | Vibration-resistant sensor elements up to 60 g |
