Macnaught

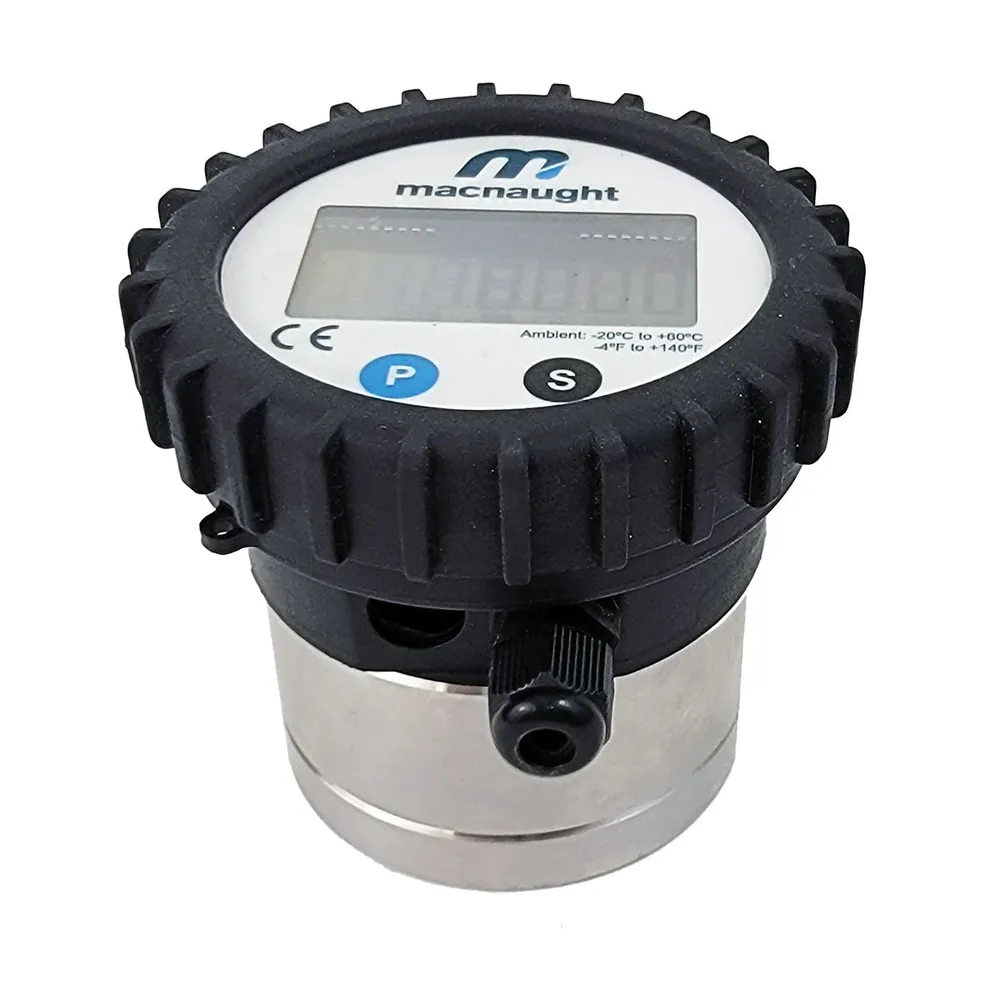

Macnaught MX Series Solvent Positive Displacement Flow Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±0.5% of reading (±0.25% available); repeatability ±0.03%
Type
Positive-displacement oval-gear flow meter (MX Series; solvent-capable constructions)
Sizes Flow
¼–4 in; approx. 0.5 LPH to 2500 LPM model-dependent
Materials
Billet aluminium / 316SS / PPS options; FEP-encapsulated seals on solvent S-series
Temperature
Up to 120 °C (248 °F) with SS/PEEK rotors (remote display)
Pressure
Up to ~1000–2000 PSI class by size (see cut sheet)
| Parámetro | Valor |
|---|---|
| Accuracy | ±0.5% of reading (±0.25% available); repeatability ±0.03% |
| Type | Positive-displacement oval-gear flow meter (MX Series; solvent-capable constructions) |
| Sizes Flow | ¼–4 in; approx. 0.5 LPH to 2500 LPM model-dependent |
| Materials | Billet aluminium / 316SS / PPS options; FEP-encapsulated seals on solvent S-series |
| Temperature | Up to 120 °C (248 °F) with SS/PEEK rotors (remote display) |
| Pressure | Up to ~1000–2000 PSI class by size (see cut sheet) |
| Outputs | Programmable digital display, pulse, intrinsically safe pulse, 4–20 mA options |
| Installation | No flow conditioning required; compact lay length |
| Document | Macnaught MX/M Series cut sheet + MX Series Selection Guide |
