Watlow

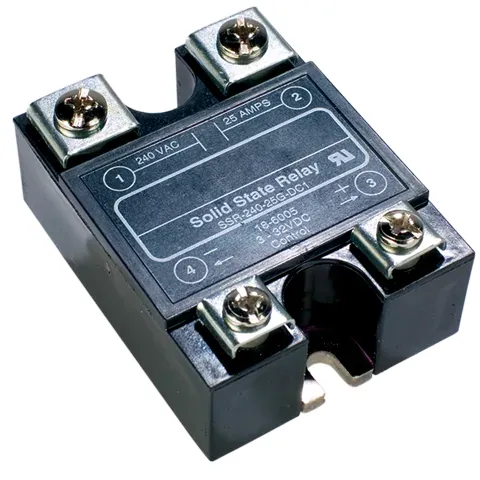

Watlow Solid State Relays
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Mounting
Back panel (heatsink mounting with thermal foil + Belleville washers)
Output Firing
Zero-cross (time-proportional ~1/10 s cycle)
Output Voltage Range
24 to 660 VAC AC output models; switched VDC model for DC heating
Max Output Current
75 A
Phase Configurations
1-phase
Control Input
DC or AC control inputs (model dependent; WIN-SSR-0124)
| Parámetro | Valor |
|---|---|
| Mounting | Back panel (heatsink mounting with thermal foil + Belleville washers) |
| Output Firing | Zero-cross (time-proportional ~1/10 s cycle) |
| Output Voltage Range | 24 to 660 VAC AC output models; switched VDC model for DC heating |
| Max Output Current | 75 A |
| Phase Configurations | 1-phase |
| Control Input | DC or AC control inputs (model dependent; WIN-SSR-0124) |
| Ambient Operating Range | 25 to 85 °C (77 to 185 °F) |
| Agency Approvals | UL; CSA; SCCR |
| Construction | Back-to-back SCR AC output (not triac-based) |
| Warranty Years | 2 |
| Accessories | Matched semiconductor fuses, heatsinks, thermal foil, Belleville washers; SDA shorted-SSR detector / SBL cards |
| Profiling | No |
| Tru Tune | No |
