Carlo Gavazzi

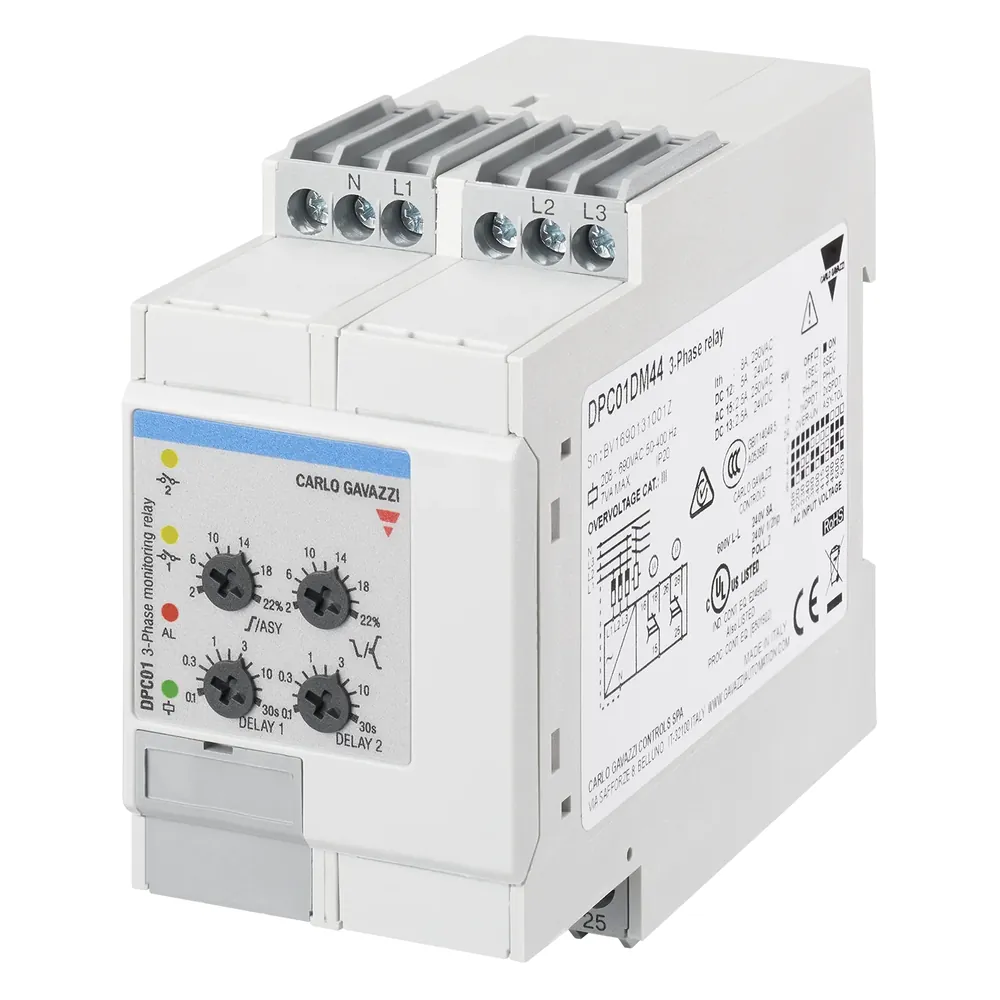

Carlo Gavazzi DPC01 Monitoring Relay
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Mounting
DIN-rail (DPC01); plug-in PPC01 variants
Type
True RMS 3-phase / 3-phase+N multifunction monitoring relay (Carlo Gavazzi DPC01)
Functions
Phase loss; phase sequence; over/undervoltage; asymmetry; tolerance
Mains
3-wire (3P) or 4-wire (3P+N)
Voltage Example
DPC01DM48: 380–480 V L-L AC ±15% (323–552 V)
Frequency
50–60 Hz (400 Hz variants available)
| Parámetro | Valor |
|---|---|
| Mounting | DIN-rail (DPC01); plug-in PPC01 variants |
| Type | True RMS 3-phase / 3-phase+N multifunction monitoring relay (Carlo Gavazzi DPC01) |
| Functions | Phase loss; phase sequence; over/undervoltage; asymmetry; tolerance |
| Mains | 3-wire (3P) or 4-wire (3P+N) |
| Voltage Example | DPC01DM48: 380–480 V L-L AC ±15% (323–552 V) |
| Frequency | 50–60 Hz (400 Hz variants available) |
| Outputs | 2 × SPDT changeover relay outputs |
| Supply | Supplied by measured phases (L1, L2, L3) |
| Indication | Output and status LED indication |
| Document | DPC01/PPC01 Datasheet ENG + DPC01 Installation Manual |
