Carlo Gavazzi

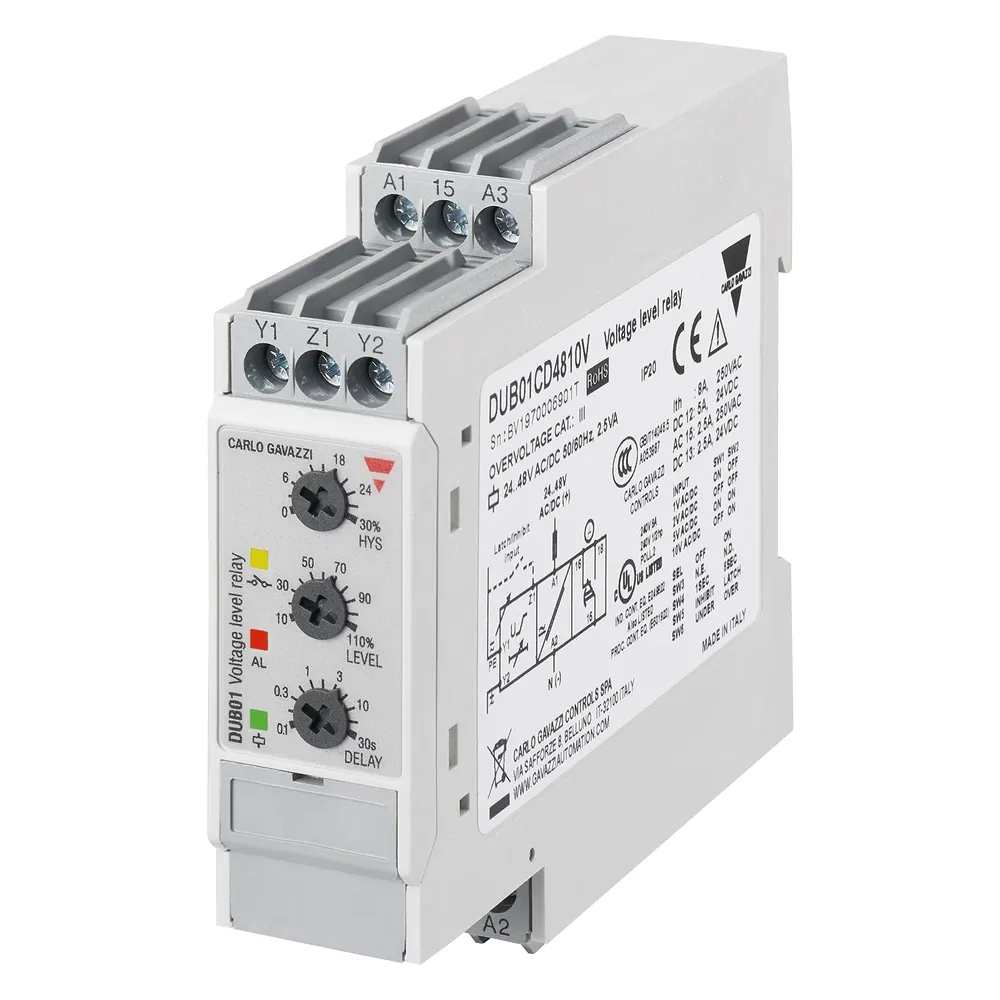

Carlo Gavazzi DUB01 Monitoring Relay
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Approvals
CE; UL; CCC (variant-dependent)
Mounting
DIN-rail per DIN/EN/IEC 60715 (DUB01); plug-in PUB01 variants
Type
1-phase True RMS AC/DC over or under voltage monitoring relay (Carlo Gavazzi DUB01)
Measuring Ranges
0.1 to 500 V AC/DC (DIP-switch selectable ranges)
Supply Options
24–48 VAC/DC or 115/230 VAC (variant-dependent)
Dimensions
22.5 × 80 × 99.5 mm (DUB01)
| Parámetro | Valor |
|---|---|
| Approvals | CE; UL; CCC (variant-dependent) |
| Mounting | DIN-rail per DIN/EN/IEC 60715 (DUB01); plug-in PUB01 variants |
| Type | 1-phase True RMS AC/DC over or under voltage monitoring relay (Carlo Gavazzi DUB01) |
| Measuring Ranges | 0.1 to 500 V AC/DC (DIP-switch selectable ranges) |
| Supply Options | 24–48 VAC/DC or 115/230 VAC (variant-dependent) |
| Dimensions | 22.5 × 80 × 99.5 mm (DUB01) |
| Indication | LED for relay, alarm and power supply ON |
| Features | Latch function; adjustable setpoint on relative scale; adjustable delay |
| Document | DUB01CB Datasheet ENG + DUBX1/PUB01 Installation Manual |
