Endress+Hauser

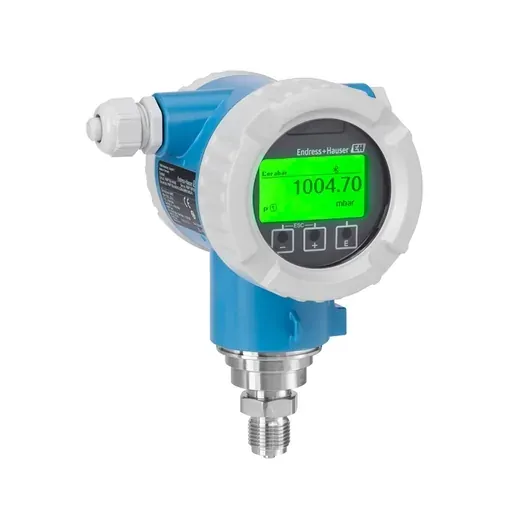

Endress+Hauser Cerabar PMP71B Pressure Transmitter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
400 mbar…700 bar (6 psi…10,500 psi) measuring cell options
Accuracy
Standard up to 0.05%; Platinum up to ±0.025%
Output
4–20 mA HART; PROFINET over Ethernet-APL; PROFIBUS PA; optional Bluetooth
Supply
10.5…35 VDC (Ex d/e/non-Ex); 10.5…30 VDC (Ex i)
Wetted parts
316L, AlloyC, Tantalum, Monel, PTFE, Gold options
Ambient temperature
−60…+80 °C (see TI tables)
| Parámetro | Valor |
|---|---|
| Measuring range | 400 mbar…700 bar (6 psi…10,500 psi) measuring cell options |
| Accuracy | Standard up to 0.05%; Platinum up to ±0.025% |
| Output | 4–20 mA HART; PROFINET over Ethernet-APL; PROFIBUS PA; optional Bluetooth |
| Supply | 10.5…35 VDC (Ex d/e/non-Ex); 10.5…30 VDC (Ex i) |
| Wetted parts | 316L, AlloyC, Tantalum, Monel, PTFE, Gold options |
| Ambient temperature | −60…+80 °C (see TI tables) |
| Sensor type | Metallic process membrane; absolute and gauge pressure |
| Process Temperature | Standard −40…+125 °C; diaphragm seal up to +400 °C |
| Turn Down | Up to 100:1 (higher on request) |
| Long Term Stability | 0.05% URL/year; 0.10% URL/10 years |
| Max Opl | Up to 1,050 bar (15,750 psi) depending on cell |
