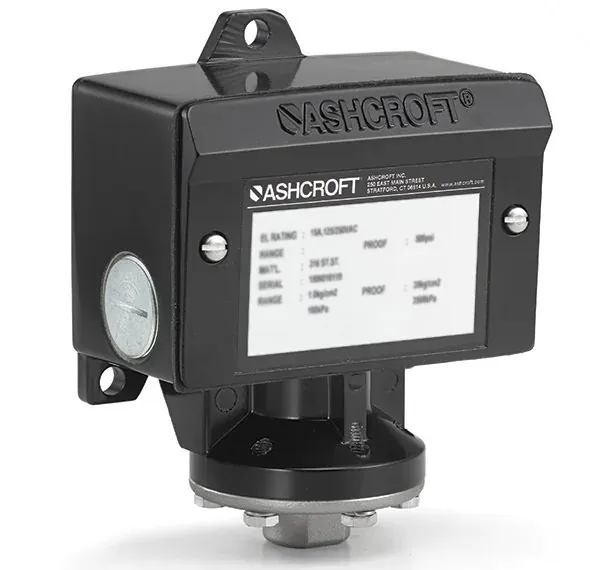

Ashcroft B Series Pressure Switch

SKU · 37159 · B Series Pressure Switch · Marca: Ashcroft

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Measuring range

Pressure vacuum to 3000 psi; differential 0–600 psid; hydraulic 1000–7500 psi

Accuracy

Setpoint repeatability ±1% of full range (additional ±1%/50 °F shift from 70 °F set typical)

Output

SPDT or DPDT switch elements; wide element selection

Process connection

¼ NPT female standard; ½ NPT female or ¼ F × ½ M combo optional

Electrical connection

¾ NPT female standard; ½ NPT or M20×1.5 optional

Wetted parts

Diaphragm Buna-N, Viton, Teflon, 316 SS, or Monel

Parámetro	Valor
Measuring range	Pressure vacuum to 3000 psi; differential 0–600 psid; hydraulic 1000–7500 psi
Accuracy	Setpoint repeatability ±1% of full range (additional ±1%/50 °F shift from 70 °F set typical)
Output	SPDT or DPDT switch elements; wide element selection
Process connection	¼ NPT female standard; ½ NPT female or ¼ F × ½ M combo optional
Electrical connection	¾ NPT female standard; ½ NPT or M20×1.5 optional
Wetted parts	Diaphragm Buna-N, Viton, Teflon, 316 SS, or Monel
Protection	B4/H4 NEMA 4X IP66; B7 NEMA 7/9 IP66
Ambient temperature	−20 to 150 °F (−28 to 65 °C); calibrated at 70 °F
Approvals	UL; CSA; FM; ATEX; IECEx; CE; UKCA; CRN; SIL 3 Capable; NSF-61; RoHS
Setpoint	Single setpoint factory-set or field adjustable 15–100% of range
Enclosure Material	Epoxy-coated aluminum standard; optional 316 SS (NEMA 7/9)
Process Temperature	0–150 °F Buna/Teflon; 20–300 °F Viton; 0–300 °F SS/Monel
Deadband	Fixed or limited adjustable per switch element
Special Features	NACE and fire-safe designs; SIL 3 capable B/D series; hermetically sealed element options
