WIKA

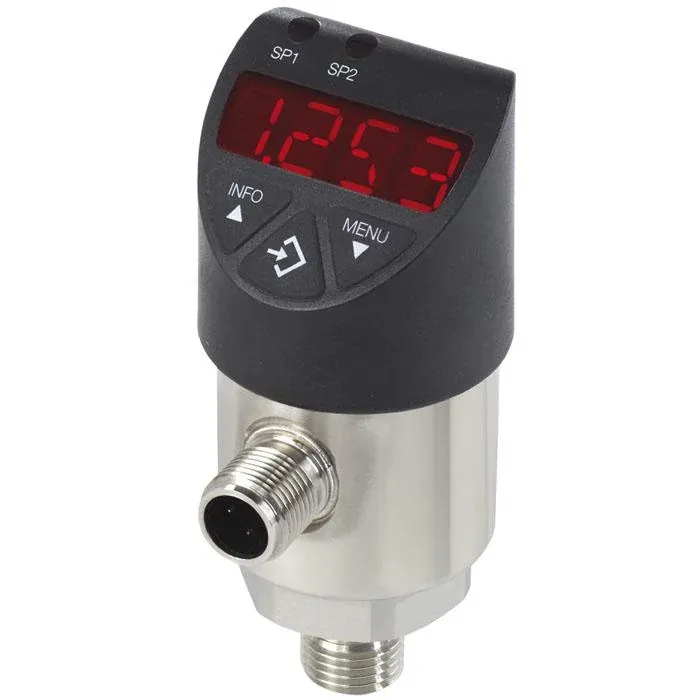

WIKA PSD-4 Pressure Switch
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Gauge and absolute ranges per PE 81.86; up to 1000 bar / 14500 psi class
Accuracy
Switch-point accuracy <= +/-0.5% of span
Supply
DC 15-35 V
Wetted parts
Stainless steel 316L (range-dependent)
Display
14-segment red LED display; 3-button setup; electronically rotatable
Type
Electronic pressure switch with display (model PSD-4)
| Parámetro | Valor |
|---|---|
| Measuring range | Gauge and absolute ranges per PE 81.86; up to 1000 bar / 14500 psi class |
| Accuracy | Switch-point accuracy <= +/-0.5% of span |
| Supply | DC 15-35 V |
| Wetted parts | Stainless steel 316L (range-dependent) |
| Display | 14-segment red LED display; 3-button setup; electronically rotatable |
| Type | Electronic pressure switch with display (model PSD-4) |
| Outputs | PNP/NPN switching (1 or 2) and/or analogue 4-20 mA or 0-10 V; IO-Link 1.1 |
| Switching Current | Max 250 mA per switching output |
| Response Time | Switching output <= 5 ms class |
| Applications | Machine tools, hydraulics/pneumatics, hygienic food/pharma class |
| Document | WIKA data sheet PE 81.86 (PSD-4) |
