VEGA

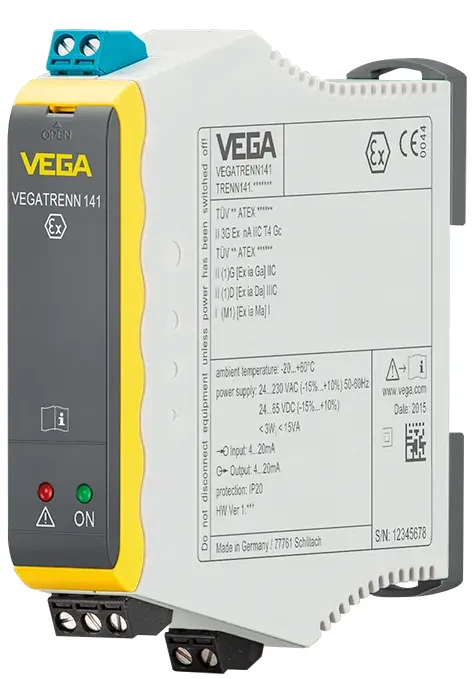

VEGA VEGATRENN 141 Single Channel Separator
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Supply
AC 24…230 V (−15%/+10%) 50/60 Hz; DC 24…65 V (−15%/+10%)
Ambient temperature
−20…+60 °C (−4…+140 °F)
Mounting
DIN rail 35×7.5 mm per EN 50022/60715
Channels
Single channel active Ex separator
Sensor Input
1 × 4…20 mA/HART (up to 5× HART multidrop)
Input Type
Active (sensor powered by VEGATRENN 141)
| Parámetro | Valor |
|---|---|
| Supply | AC 24…230 V (−15%/+10%) 50/60 Hz; DC 24…65 V (−15%/+10%) |
| Ambient temperature | −20…+60 °C (−4…+140 °F) |
| Mounting | DIN rail 35×7.5 mm per EN 50022/60715 |
| Channels | Single channel active Ex separator |
| Sensor Input | 1 × 4…20 mA/HART (up to 5× HART multidrop) |
| Input Type | Active (sensor powered by VEGATRENN 141) |
| Terminal Voltage | 21…16.5 V DC at 4…20 mA; off-load 24 V DC (±1 V) |
| Power Consumption | Max 3 W (15 VA) |
| Protection Rating | IP20; Protection class II; Pollution degree 2 |
| Hart | Bidirectional HART via front sockets or terminals |
| Sil | SIL2 qualification |
