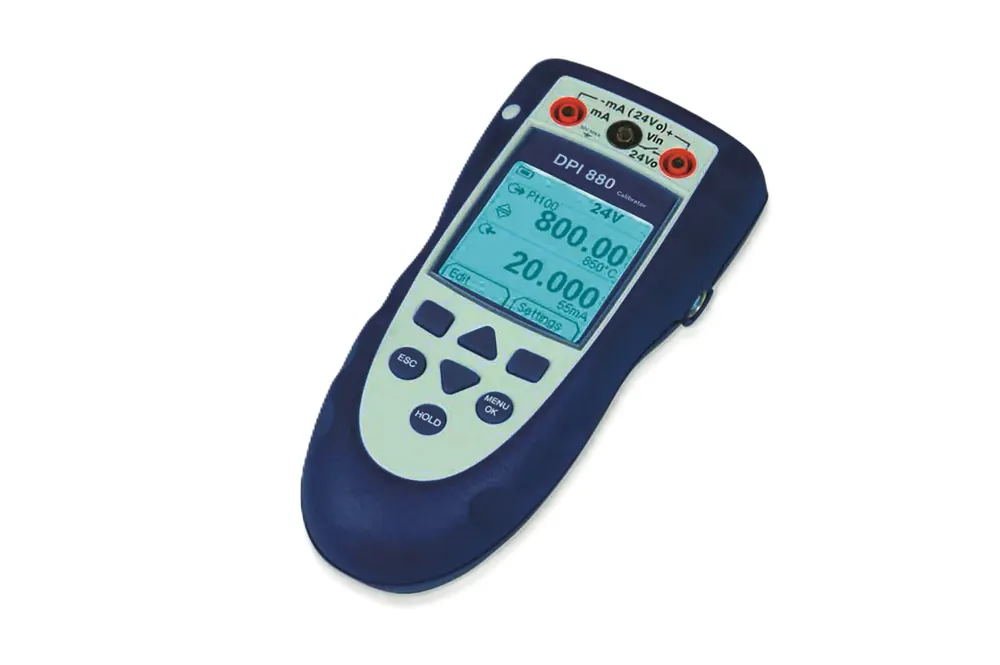

Druck DPI 880 Multi-Function Calibrator

SKU · 18310 · DPI 880 · Marca: Druck

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Measuring range

mA, mV/V, ohms, frequency/pulses, RTD, thermocouple; pressure via IDOS UPM modules

Accuracy

Electrical accuracies per DPI 880 datasheet tables; pressure accuracy per IDOS module

Output

mA source/measure with 24 V loop power; HART 250 Ω resistor; switch and leak test

Supply

Internal batteries; 24 V loop power for transmitters

Process connection

IDOS universal pressure module interface

Housing

Rugged handheld elastomer-protected enclosure

Parámetro	Valor
Measuring range	mA, mV/V, ohms, frequency/pulses, RTD, thermocouple; pressure via IDOS UPM modules
Accuracy	Electrical accuracies per DPI 880 datasheet tables; pressure accuracy per IDOS module
Output	mA source/measure with 24 V loop power; HART 250 Ω resistor; switch and leak test
Supply	Internal batteries; 24 V loop power for transmitters
Process connection	IDOS universal pressure module interface
Housing	Rugged handheld elastomer-protected enclosure
Ambient temperature	Operating per Druck DPI 880 datasheet environmental section
Display	Backlit dual-parameter display
Communication	HART loop resistor support; desktop connectivity per system
Approvals	CE and regional markings per datasheet
Mounting	Handheld field/workshop multifunction calibrator
Notes	Replacement harvest for skipped 49009 (duplicate of 39101 DPI620 Genii Package).
Functions	Measure, source and simulate electrical signals; simultaneous dual readings
Data Logging	Up to 1,000 point data storage
