Rosemount

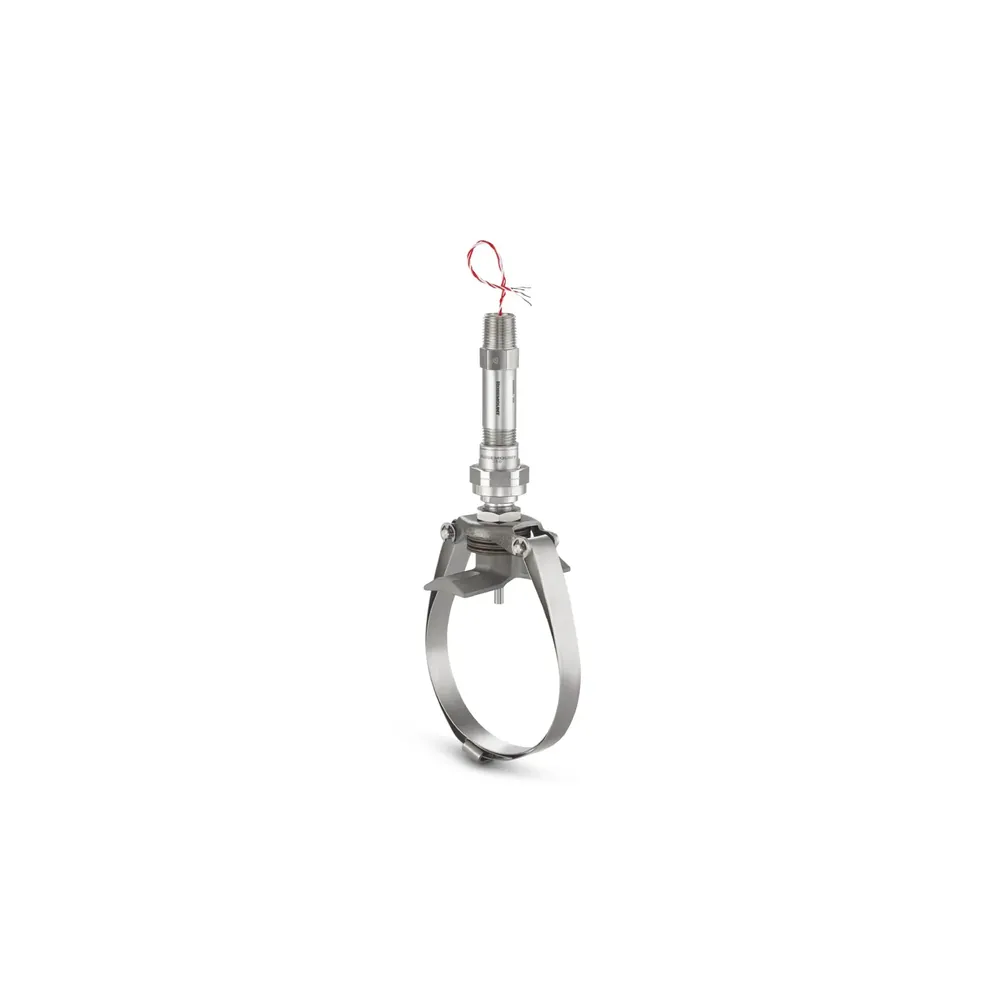

Rosemount 0085 Pipe Clamp Sensor
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
−50 to +300 °C (−58 to +572 °F) surface/pipe temperature
Sensor type
Platinum RTD Class A; single-element 4-wire (P1) or dual-element 3-wire (P2) with silver tip
Pipe Size
½ to 60 in (≈22 to 1524 mm); clamp styles DN15–1200 (½–48 in) typical
Design
Non-intrusive spring-loaded pipe clamp; no welding; optional assemble-to-transmitter
Clamp Materials
1.4301 (304 SST), duplex 1.4462 (F51), or carbon steel 1.0037
Special Features
Compatible with Rosemount X-well Technology on 3144P/648 (option PT) for process temperature without thermowell
| Parámetro | Valor |
|---|---|
| Measuring range | −50 to +300 °C (−58 to +572 °F) surface/pipe temperature |
| Sensor type | Platinum RTD Class A; single-element 4-wire (P1) or dual-element 3-wire (P2) with silver tip |
| Pipe Size | ½ to 60 in (≈22 to 1524 mm); clamp styles DN15–1200 (½–48 in) typical |
| Design | Non-intrusive spring-loaded pipe clamp; no welding; optional assemble-to-transmitter |
| Clamp Materials | 1.4301 (304 SST), duplex 1.4462 (F51), or carbon steel 1.0037 |
| Special Features | Compatible with Rosemount X-well Technology on 3144P/648 (option PT) for process temperature without thermowell |
| Installation | Universal or small-pipe mount; maintenance without process shutdown |
| Response | Improved response with silver tip; optimized surface contact |
