Rosemount

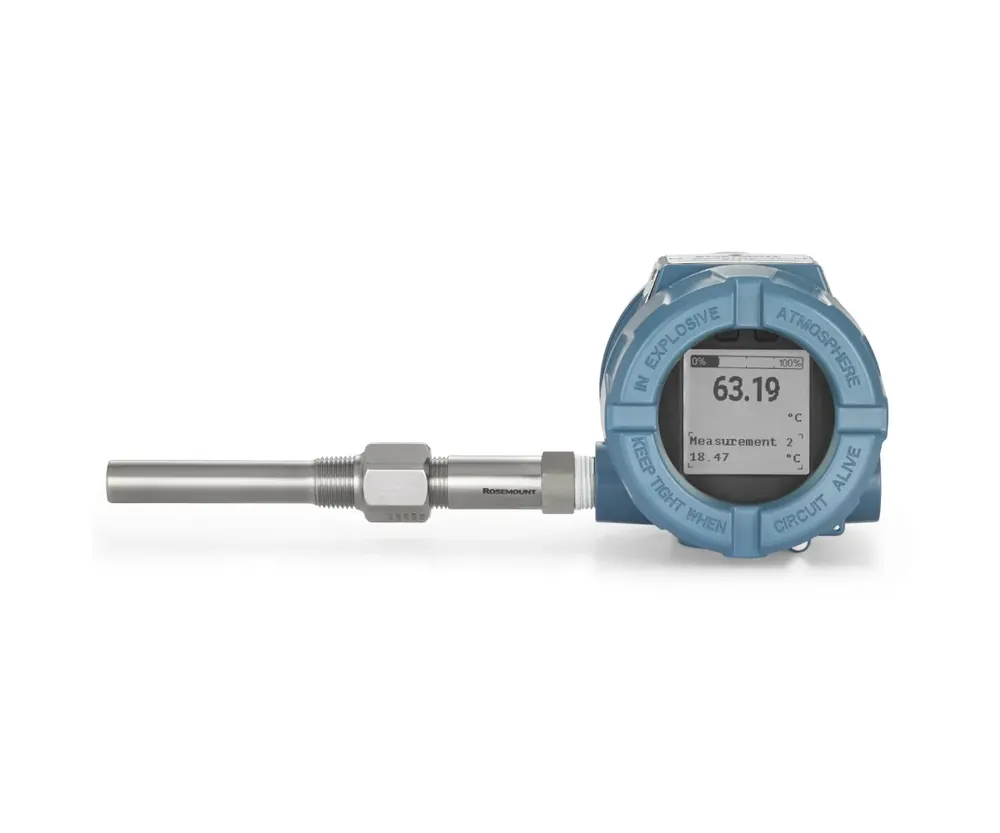

Rosemount 3144S Temperature Transmitter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Sensor/input dependent; X-well non-intrusive measurement up to 650 °C
Accuracy
High-accuracy dual-sensor transmitter architecture (see PDS for input tables)
Output
4–20 mA with HART; Safety Certified transmitter options
Process connection
Sensor assembly / thermowell / remote mount per Rosemount temperature portfolio
Display
Optional LCD meter configurations per ordering
Communication
HART; Bluetooth connectivity for configuration/diagnostics
| Parámetro | Valor |
|---|---|
| Measuring range | Sensor/input dependent; X-well non-intrusive measurement up to 650 °C |
| Accuracy | High-accuracy dual-sensor transmitter architecture (see PDS for input tables) |
| Output | 4–20 mA with HART; Safety Certified transmitter options |
| Process connection | Sensor assembly / thermowell / remote mount per Rosemount temperature portfolio |
| Display | Optional LCD meter configurations per ordering |
| Communication | HART; Bluetooth connectivity for configuration/diagnostics |
| Approvals | Functional safety certificate (SIL); regional hazardous-area approvals per ordering |
| Input Types | RTD, thermocouple, mV, and ohms inputs |
| Diagnostics | Advanced transmitter diagnostics; ReadyConnect plug-and-play configuration |
| Special Features | ReadyConnect; Bluetooth; X-well technology option |
| Safety | SIS / functional safety certified variants available |
| Housing | Field-mount temperature transmitter housings (aluminum/SST options per ordering) |
| Configuration | Local/remote configuration; AMS/HART tools; Bluetooth app path |
| Document Refs | PDS MS-00813-0100-6184; Reference Manual MS-00809-0100-6184 |
