Fluke

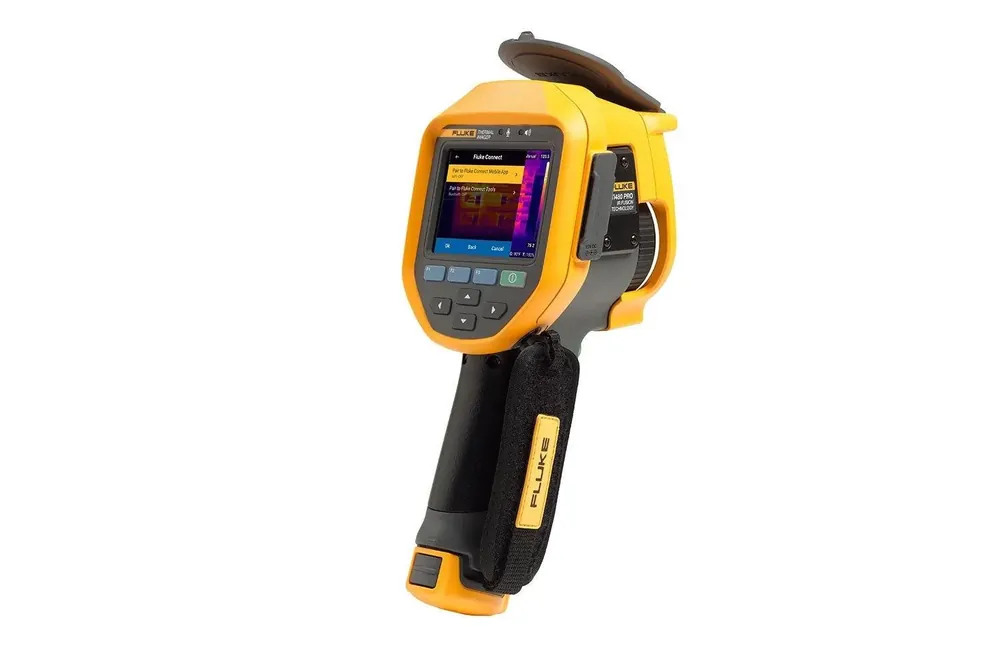

Fluke Ti480 PRO Infrared Camera
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±2 °C or ±2% (whichever greater) typical Fluke IR camera class
Approvals
CE
Infrared Resolution
640 × 480 (307,200 pixels); SuperResolution to 1280 × 960 in software
Spatial Resolution
0.93 mRad IFOV; D:S 1065:1 with standard lens
Field Of View
34° H × 24° V (standard lens)
Temperature Range
−20 °C to 1000 °C (typical PRO series coverage; see DS range tables)
| Parámetro | Valor |
|---|---|
| Accuracy | ±2 °C or ±2% (whichever greater) typical Fluke IR camera class |
| Approvals | CE |
| Infrared Resolution | 640 × 480 (307,200 pixels); SuperResolution to 1280 × 960 in software |
| Spatial Resolution | 0.93 mRad IFOV; D:S 1065:1 with standard lens |
| Field Of View | 34° H × 24° V (standard lens) |
| Temperature Range | −20 °C to 1000 °C (typical PRO series coverage; see DS range tables) |
| Focus | MultiSharp Focus + LaserSharp Auto Focus; laser distance meter |
| Thermal Sensitivity | Increased PRO-series NETD (companion Ti450 PRO ≤25 mK @ 30 °C referenced on shared DS) |
| Frame Rate | 60 Hz or 9 Hz ordering variants |
| Lenses | Interchangeable smart lenses (2×/4× telephoto, wide, macro) — no recalibration |
| Annotations | IR-PhotoNotes, voice annotation, color alarms, multiple markers, 9 palettes |
| Connectivity | Fluke Connect wireless sync to asset records / work orders |
| Minimum Focus Distance | 15 cm (approx. 6 in) with standard lens |
| Special Features | Fluke Connect compatible; SuperResolution; MultiSharp Focus |
