VPInstruments

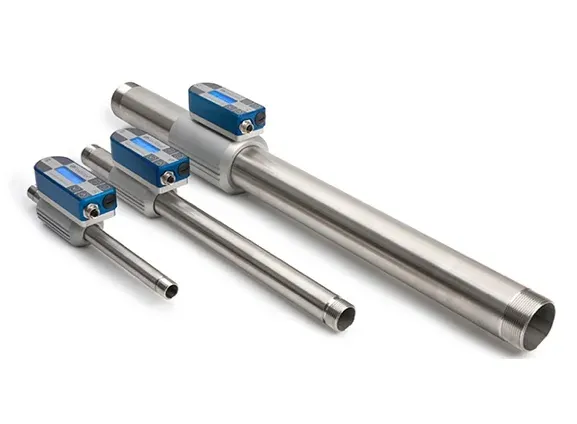

VPInstruments VPFlowScope In-Line Flow Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
VPInstruments VPFlowScope In-line Thermabridge thermal mass flow meter for compressed air and technical gases
Measurands
Flow, pressure, temperature, and totalizer (three-in-one sensor)
Flow Ranges
0.5 in: 0.23-80 m3n/hr; 1 in: 0.91-250; 2 in: 3.55-1000 m3n/hr (SCFM equivalents per brochure)
Flow Accuracy
0.5% FSS under calibration conditions with air (with calibration report)
Pressure Sensor
0-16 bar gauge standard (35 bar / 500 psi on request); +/-1.5% FSS (0-60 C)
Gas Temperature
0 to 60 C (32 to 140 F)
| Parámetro | Valor |
|---|---|
| Type | VPInstruments VPFlowScope In-line Thermabridge thermal mass flow meter for compressed air and technical gases |
| Measurands | Flow, pressure, temperature, and totalizer (three-in-one sensor) |
| Flow Ranges | 0.5 in: 0.23-80 m3n/hr; 1 in: 0.91-250; 2 in: 3.55-1000 m3n/hr (SCFM equivalents per brochure) |
| Flow Accuracy | 0.5% FSS under calibration conditions with air (with calibration report) |
| Pressure Sensor | 0-16 bar gauge standard (35 bar / 500 psi on request); +/-1.5% FSS (0-60 C) |
| Gas Temperature | 0 to 60 C (32 to 140 F) |
| Outputs | RS485 Modbus RTU, 4-20 mA, and pulse standard |
| Display Options | D0 no display; D10 display; D11 display with 2 million point data logger |
| Bidirectional | Optional bi-directional Thermabridge measurement for networks/cost allocation |
| Protection | IP65 when mated to connector (avoid direct rain/sunlight) |
| Gases | Compressed air and technical gases including N2, O2, He, Ar, CO2, mixed gases |
| Document | VPFlowScope In-line brochure CAT-VP-SINL (VPInstruments OEM content via Contika republish + shop.vpinstruments.com) |
