Fox Thermal Instruments

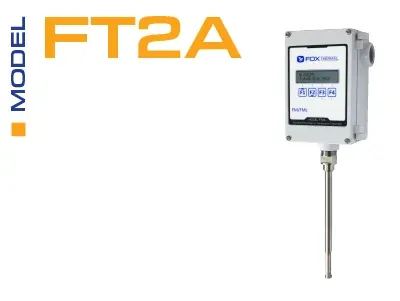

Fox Thermal Instruments FT2A Thermal Mass Flow Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Display
2×16 character backlit display with configuration panel
Approvals
FM/FMc Class I/II/III Div 2; NEMA 4X; CE / EN 61326 / EN 61010
Type
Thermal gas mass flow meter & temperature transmitter (FT2A); insertion or inline
Flow Accuracy
Insertion: ±1% of reading ±0.2% of full scale
Repeatability
±0.2% of full scale
Turndown
Up to 1000:1; 100:1 typical
| Parámetro | Valor |
|---|---|
| Display | 2×16 character backlit display with configuration panel |
| Approvals | FM/FMc Class I/II/III Div 2; NEMA 4X; CE / EN 61326 / EN 61010 |
| Type | Thermal gas mass flow meter & temperature transmitter (FT2A); insertion or inline |
| Flow Accuracy | Insertion: ±1% of reading ±0.2% of full scale |
| Repeatability | ±0.2% of full scale |
| Turndown | Up to 1000:1; 100:1 typical |
| Temperature Accuracy | ±1.8 °F (±1.0 °C) over −40 to 250 °F (−40 to 121 °C) |
| Outputs | 4–20 mA flow & temperature; pulse for flow/total; USB; optional Modbus/BACnet/Profibus/DeviceNet/Ethernet |
| Sensor | Welded 316 SS (Hastelloy C276 optional); constant ΔT thermal mass |
| Pressure | Insertion to ~500 psig (34.5 barg) class |
