Fox Thermal Instruments

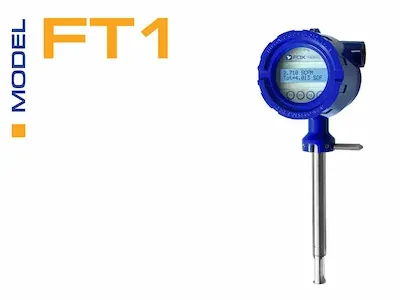

Fox Thermal Instruments FT1 Mass Flow Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Display
Optional 2-line x 16-character backlit display with configuration panel
Approvals
FM/FMc Class I Div 1; ATEX/IECEx Zone 1; NEMA 4X; CE
Type
Thermal gas mass flow meter with temperature transmitter (Model FT1)
Sensor
DDC-Sensor Direct Digitally Controlled; Gas-SelectX field-selectable gas compositions; CAL-V Calibration Validation
Styles
Insertion, inline, and remote styles
Turndown
Up to 1000:1; 100:1 typical
| Parámetro | Valor |
|---|---|
| Display | Optional 2-line x 16-character backlit display with configuration panel |
| Approvals | FM/FMc Class I Div 1; ATEX/IECEx Zone 1; NEMA 4X; CE |
| Type | Thermal gas mass flow meter with temperature transmitter (Model FT1) |
| Sensor | DDC-Sensor Direct Digitally Controlled; Gas-SelectX field-selectable gas compositions; CAL-V Calibration Validation |
| Styles | Insertion, inline, and remote styles |
| Turndown | Up to 1000:1; 100:1 typical |
| Outputs | Isolated 4-20 mA for flow or temperature (HART option); second channel pulse / Modbus RTU RS485 / BACnet MS/TP RS485 |
| Power | 12 to 24 VDC standard |
| Materials | Welded 316 SS sensor/flow body standard; carbon steel flow body optional |
| Calibration | NIST-traceable; USB port; FT1 View software |
| Document | Fox Thermal Model FT1 datasheet (FT1-DATASHEET Rev. P class) |
