Endress+Hauser

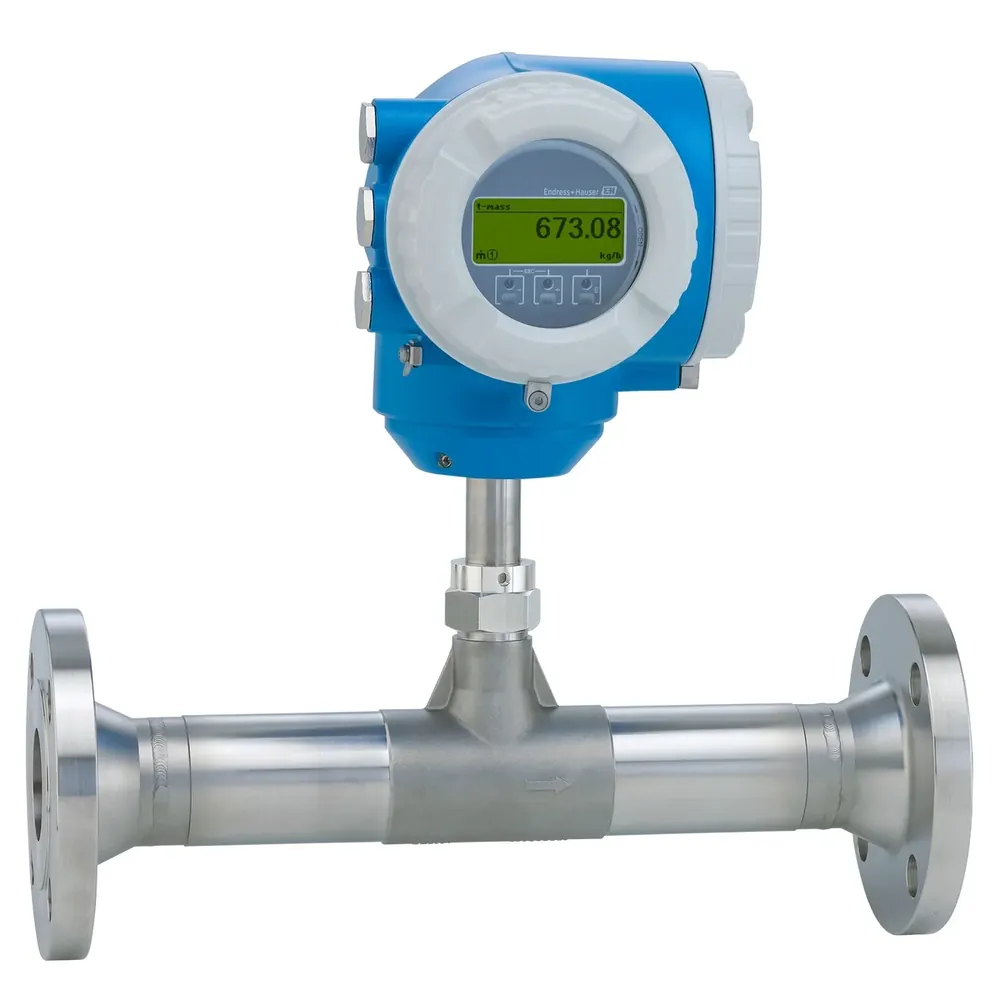

Endress+Hauser Proline t-mass F 300 Thermal Mass Flow Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
0.5 to 3750 kg/h (1.1 to 8250 lb/h) gas/size dependent
Accuracy
Gas ±1.0% o.r. (10–100% o.f.s.); ±0.1% o.f.s. (1–10% o.f.s.)
Output
Compact Proline 300 dual-compartment housing; up to 3 I/Os; fieldbuses; WLAN/web server
Wetted parts
Measuring tubes CF3M/1.4408 (DN15–50) or 1.4404/316L (DN65–100); sensing element 316L / Alloy C22 options
Protection
IP66/67 Type 4X typical
Ambient temperature
−40 to +60 °C (−40 to +140 °F); optional colder transmitter/sensor ratings
| Parámetro | Valor |
|---|---|
| Measuring range | 0.5 to 3750 kg/h (1.1 to 8250 lb/h) gas/size dependent |
| Accuracy | Gas ±1.0% o.r. (10–100% o.f.s.); ±0.1% o.f.s. (1–10% o.f.s.) |
| Output | Compact Proline 300 dual-compartment housing; up to 3 I/Os; fieldbuses; WLAN/web server |
| Wetted parts | Measuring tubes CF3M/1.4408 (DN15–50) or 1.4404/316L (DN65–100); sensing element 316L / Alloy C22 options |
| Protection | IP66/67 Type 4X typical |
| Ambient temperature | −40 to +60 °C (−40 to +140 °F); optional colder transmitter/sensor ratings |
| Display | Backlit touch display; remote display available |
| Measuring Principle | Thermal mass (dispersion); direct mass flow of gases and mixtures; Gas Engine (21 standard gases / free mixtures) |
| Line Size | Inline DN 15 to 100 (½ to 4 in) |
| Bidirectional | Yes; patented drift-free sensor with SIL 2 option |
| Medium Temperature | Sensor −40 to +180 °C (−40 to +356 °F) |
| Medium Pressure | Max PN40 / Class 300 / 20K |
| Special Features | Heartbeat Technology; removable sensor; reverse-flow detection |
