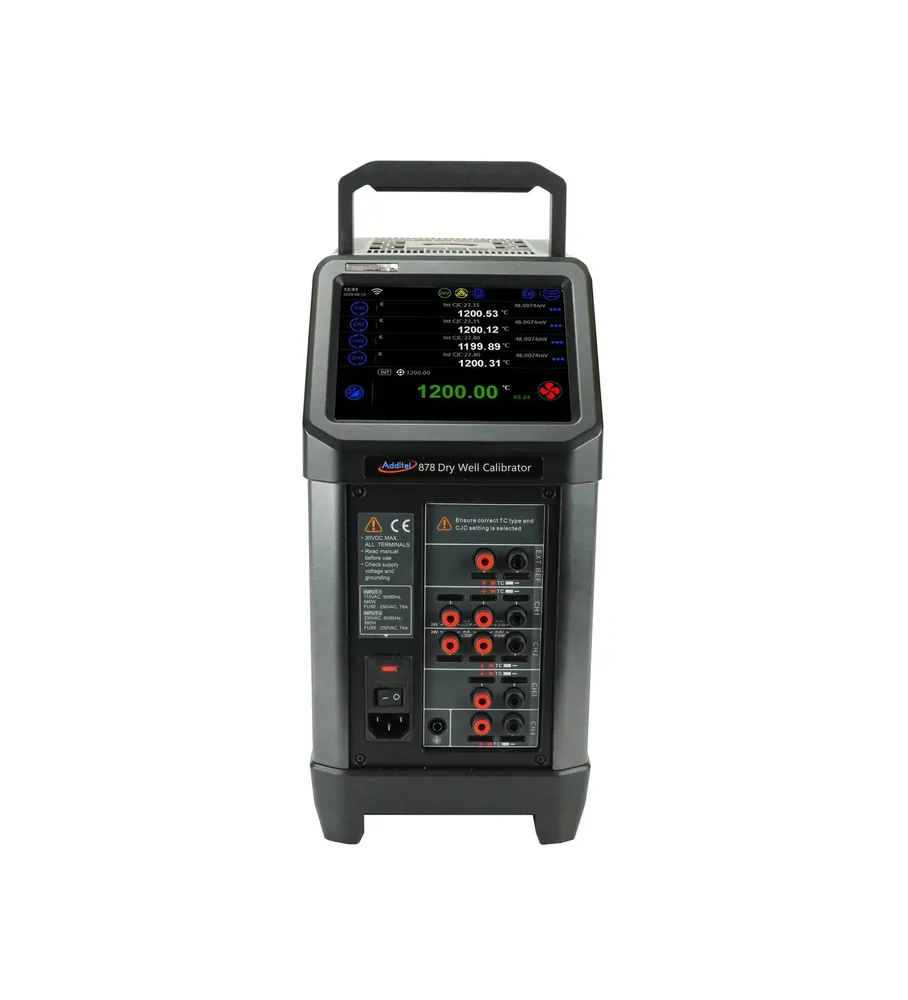

Additel ADT875 / ADT878-1210 Thermocouple Calibration Furnaces

SKU · 47532 · ADT875 / ADT878-1210 Thermocouple Calibration Furnaces · Marca: Additel

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Measuring range

Temperature control 100 °C to 1210 °C

Accuracy

ADT878 display accuracy ±1.5 °C @ 1210 °C; ADT875 ±2.0 °C @ 1210 °C; stability ±0.1 °C

Ambient temperature

Guaranteed accuracy 8 to 38 °C; operation 0 to 50 °C, 0–90% RH non-condensing, 3000 m

Display

Color touch screen; resolution 0.01 °C

Approvals

ISO 17025 accredited calibration with data included

Axial Uniformity

ADT878 ±1 °C @ 1210 °C (20 mm zone); ADT875 ±1.5 °C @ 1210 °C

Parámetro	Valor
Measuring range	Temperature control 100 °C to 1210 °C
Accuracy	ADT878 display accuracy ±1.5 °C @ 1210 °C; ADT875 ±2.0 °C @ 1210 °C; stability ±0.1 °C
Ambient temperature	Guaranteed accuracy 8 to 38 °C; operation 0 to 50 °C, 0–90% RH non-condensing, 3000 m
Display	Color touch screen; resolution 0.01 °C
Approvals	ISO 17025 accredited calibration with data included
Axial Uniformity	ADT878 ±1 °C @ 1210 °C (20 mm zone); ADT875 ±1.5 °C @ 1210 °C
Radial Uniformity	ADT878 ±0.8 °C @ 1210 °C; ADT875 ±1 °C @ 1210 °C
Insert Od	24.8 mm (0.98 in) metallic interchangeable inserts
Immersion Depth	XR inserts 138 mm; XS inserts 116 mm
Heating Time	Approx. 50 min from 23 °C to 1210 °C
Process Electronics	Optional PC: 4 on-board TC channels, HART, task documentation, Wi-Fi/Bluetooth
Weight	Approx. 10.6 kg (23.4 lb)
Power Supply	90–254 VAC, 45–65 Hz, ~580 W
Special Features	Patent-pending multi-zone / wind-tunnel adaptive control; self-calibration with PC option
