Endress+Hauser

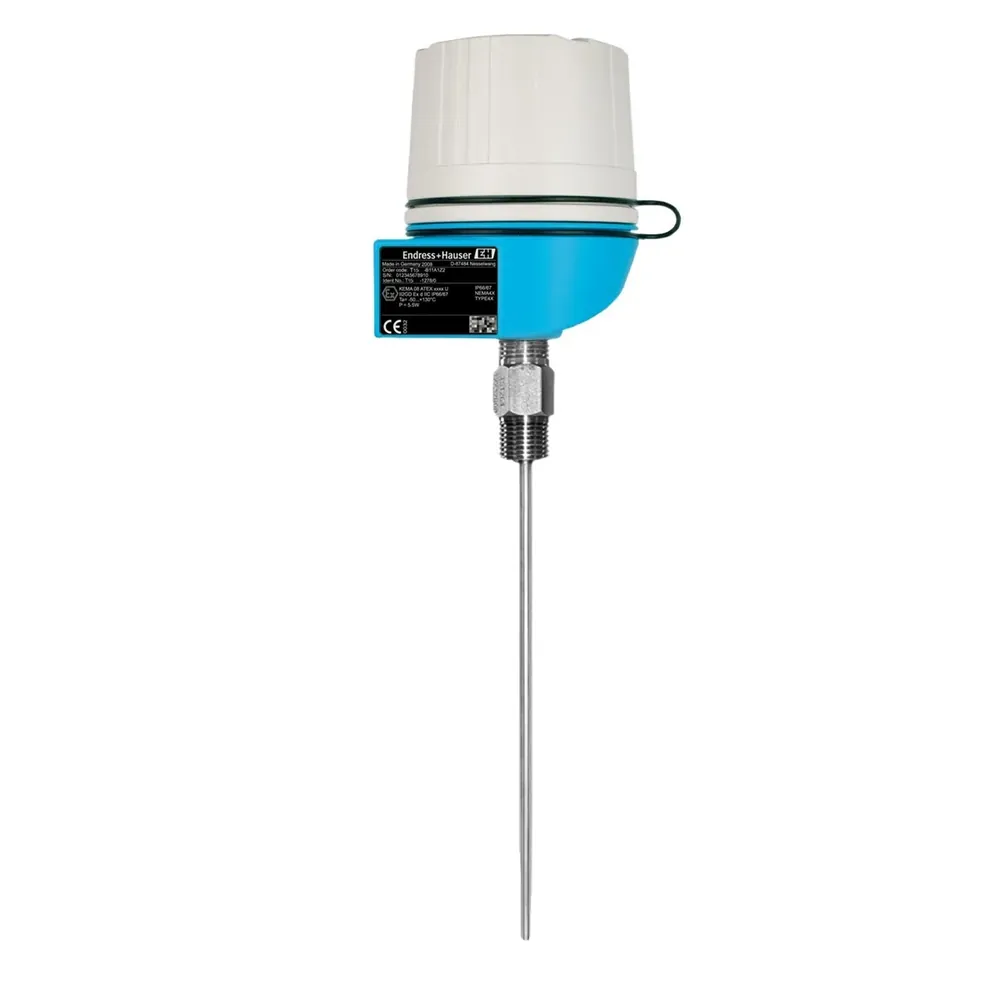

Endress+Hauser T15 Explosion-Proof Pt100 RTD Thermometer Assembly
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
WW −200 to 600 °C; TF −50 to 200 °C
Accuracy
Class A or Class B per IEC 60751
Approvals
FM/CSA XP Class I Div. 1; NI/DIP control drawings
Measuring Principle
Pt100 RTD per IEC 60751
Response Time
63% response typically ≈ 3 s (configuration dependent)
Process Pressure
Not applicable on assembly alone — install only into prepared thermowell; Max working pressure = atmospheric on sensor body
| Parámetro | Valor |
|---|---|
| Measuring range | WW −200 to 600 °C; TF −50 to 200 °C |
| Accuracy | Class A or Class B per IEC 60751 |
| Approvals | FM/CSA XP Class I Div. 1; NI/DIP control drawings |
| Measuring Principle | Pt100 RTD per IEC 60751 |
| Response Time | 63% response typically ≈ 3 s (configuration dependent) |
| Process Pressure | Not applicable on assembly alone — install only into prepared thermowell; Max working pressure = atmospheric on sensor body |
| Max Immersion | Up to 100 in (2540 mm); others on request |
| Transmitter Stability | iTEMP ≤ 0.05% per year |
| Construction | Insulated RTD element + sheath + explosion-proof head; spring-loaded for thermowell |
| Wetted Note | Wetted by thermowell only; sheath materials include 316L / Hastelloy options |
| Applications | Chemicals, petrochemical, refineries, offshore |
| Special Features | Insert-only XP assembly for existing thermowells; modular transmitter heads |
| Protection Focus | Hazardous-area XP enclosure with galvanic isolation options up to 2 kV on transmitters |
