Endress+Hauser

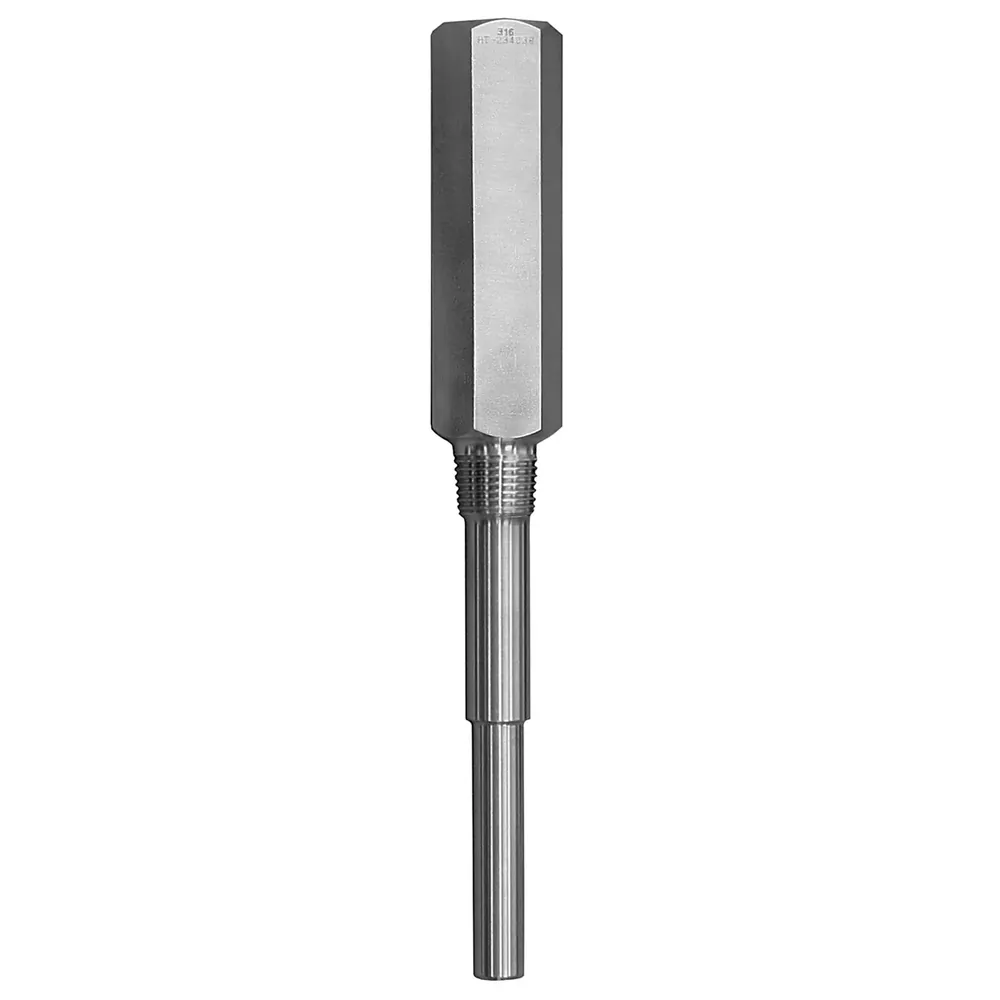

Endress+Hauser TU53 Threaded Barstock Thermowell (US Style)
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Process connection
½", ¾", and 1" NPT
Approvals
CRN
Type
Threaded drilled-barstock thermowell (US style)
Instrument Connection
½" NPT
Immersion Length
2 in to 24 in
Lag Length
Up to 6 in (½ in increments)
| Parámetro | Valor |
|---|---|
| Process connection | ½", ¾", and 1" NPT |
| Approvals | CRN |
| Type | Threaded drilled-barstock thermowell (US style) |
| Instrument Connection | ½" NPT |
| Immersion Length | 2 in to 24 in |
| Lag Length | Up to 6 in (½ in increments) |
| Bore Diameter | 0.26 in |
| Tip Thickness | 0.25 in |
| Stem Shapes | Straight, stepped, or tapered |
| Material | Standard 316/316L; special materials on request |
| Surface Roughness | 32 µin (0.8 µm) |
| Temperature Range | −200 to 700 °C (−328 to 1292 °F) |
| Max Process Pressure | Up to 500 bar (7252 psi) static (configuration dependent) |
| Applications | Chemical, Oil & Gas, Energy; RTD and thermocouple assemblies |
