Watlow

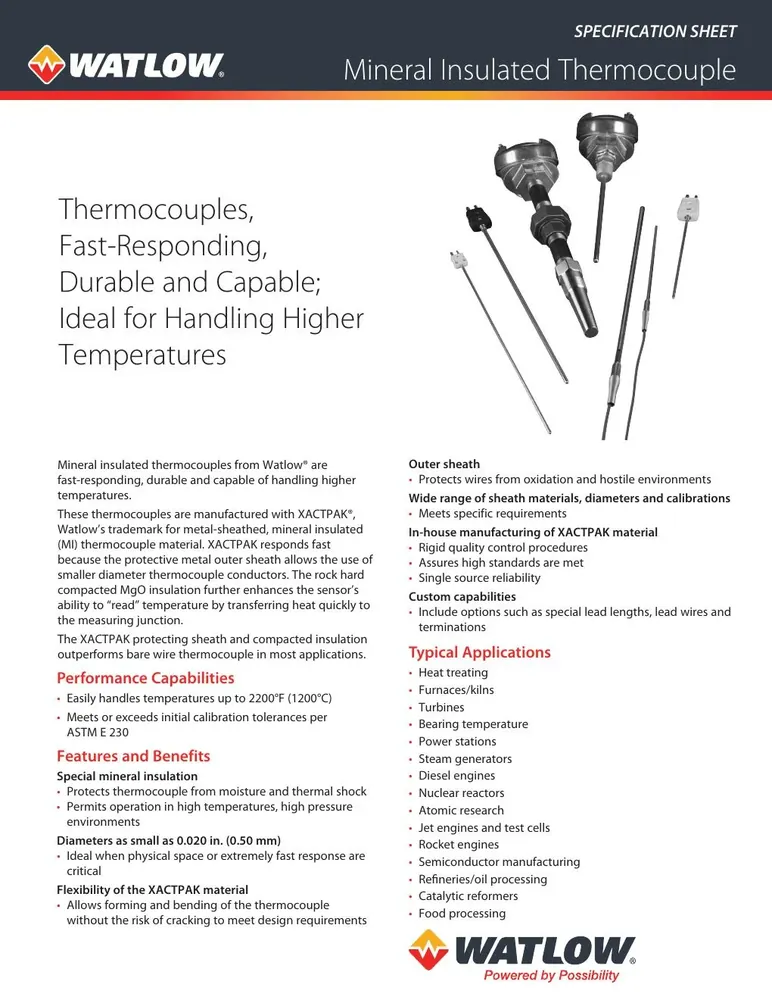

Watlow AC Style Mineral Insulated Mini Plug Thermocouple
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
Meets or exceeds initial calibration tolerances per ASTM E230
Approvals
ASTM E230 color coding / tolerances (typical sensor constructions)
Style
AC — mineral-insulated thermocouple with plug or jack termination (mini plug for sheath ≤0.125 in)
Temperature
MI constructions commonly to about 1200 °C (2200 °F); type/sheath dependent
Insulation
Compacted MgO mineral insulation (XACTPAK sheath)
Calibration
Type J, K and other ANSI/IEC calibrations; ASTM E230 color-coded connectors
| Parámetro | Valor |
|---|---|
| Accuracy | Meets or exceeds initial calibration tolerances per ASTM E230 |
| Approvals | ASTM E230 color coding / tolerances (typical sensor constructions) |
| Style | AC — mineral-insulated thermocouple with plug or jack termination (mini plug for sheath ≤0.125 in) |
| Temperature | MI constructions commonly to about 1200 °C (2200 °F); type/sheath dependent |
| Insulation | Compacted MgO mineral insulation (XACTPAK sheath) |
| Calibration | Type J, K and other ANSI/IEC calibrations; ASTM E230 color-coded connectors |
| Sheath | Diameters from about 0.020 in (0.50 mm); miniature connectors for OD up to 0.125 in (3.0 mm) |
| Termination | Plug or jack; pins/contacts same alloy as thermocouple (except Types R/S compensating alloys) |
| Junction | Grounded, ungrounded, or exposed junction options |
| Connector | ASTM color-coded connectors; adapter mounts connector rigidly to sheath |
| Sheath Materials | SS and high-temperature alloys per Watlow MI offering |
| Applications | Heat treating, furnaces/kilns, turbines, bearing temperature, power stations, process OEM |
| Special Features | Quick connect/disconnect mini plug; matching alloys for higher accuracy; small OD for fast response |
| Protection | Metal outer sheath protects conductors from oxidation and hostile environments |
