Watlow

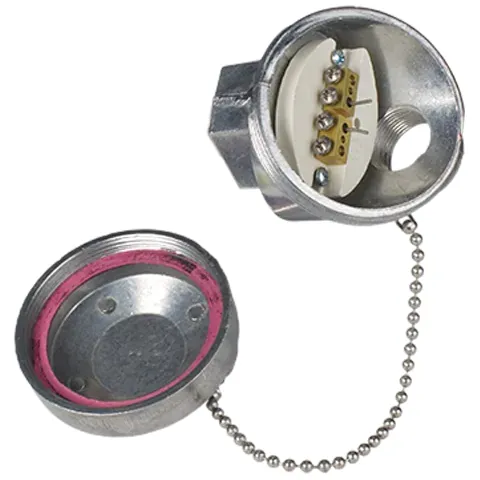

Watlow AR Style Mineral Insulated Thermocouple with Connection Head
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Approvals
ASTM E 230
Mounting
Bottom mounting standard; side mounting on request; conduit mating
Style
Style AR mineral insulated thermocouple with connection head
Temperature
Handles up to 2200 °F (1200 °C) depending on sheath/calibration
Insulation
Compacted MgO mineral insulation (XACTPAK metal sheath)
Calibration
Meets or exceeds initial calibration tolerances per ASTM E 230
| Parámetro | Valor |
|---|---|
| Approvals | ASTM E 230 |
| Mounting | Bottom mounting standard; side mounting on request; conduit mating |
| Style | Style AR mineral insulated thermocouple with connection head |
| Temperature | Handles up to 2200 °F (1200 °C) depending on sheath/calibration |
| Insulation | Compacted MgO mineral insulation (XACTPAK metal sheath) |
| Calibration | Meets or exceeds initial calibration tolerances per ASTM E 230 |
| Sheath | Wide range of sheath materials, diameters (to 0.020 in / 0.50 mm) and calibrations |
| Connection Head | Plastic, cast iron, aluminum, and explosion-proof heads; eight head styles |
| Transmitter | Optional 4–20 mA head-mounted transmitter on head styles A/B/C/D/E/H |
| Protection | Superior dust and moisture resistance for permanent installation |
| Plastic Head | Weather resistant; tolerates weak acids, organic solvents, alkalies, sunlight, dust |
| Cast Iron Head | Standard and miniature sizes for high-temperature industrial/process duty |
| Special Features | Formable XACTPAK sheath; dual-element options; custom lead lengths/terminations |
| Applications | Heat treating, furnaces/kilns, turbines, bearing temperature, power stations, process |
