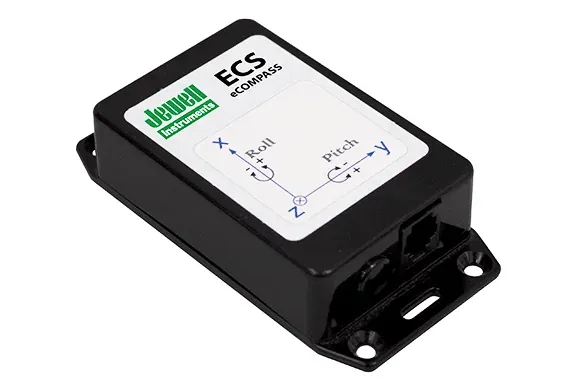

Jewell Instruments ECS Series eCompass

SKU · 45738 · ECS Series eCompass · Marca: Jewell Instruments

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Measuring range

Heading 0–360°; tilt ±42°; dip angle ±80°; magnetic field per gain settings

Accuracy

Heading 0.1° rms static/level (default filtering); 3.0° rms dynamic (<200 °/s); pitch/roll ±0.3° factory calibrated

Output

NMEA 0183 and binary; heading, pitch, roll, mag XYZ, dip, field strength

Supply

6–45 VDC unregulated

Housing

ABS flame-retardant plastic UL94 V-0 or die-cast aluminum alloy

Ambient temperature

Operating −50 to +110 °C (datasheet); storage −55 to +150 °C

Parámetro	Valor
Measuring range	Heading 0–360°; tilt ±42°; dip angle ±80°; magnetic field per gain settings
Accuracy	Heading 0.1° rms static/level (default filtering); 3.0° rms dynamic (<200 °/s); pitch/roll ±0.3° factory calibrated
Output	NMEA 0183 and binary; heading, pitch, roll, mag XYZ, dip, field strength
Supply	6–45 VDC unregulated
Housing	ABS flame-retardant plastic UL94 V-0 or die-cast aluminum alloy
Ambient temperature	Operating −50 to +110 °C (datasheet); storage −55 to +150 °C
Communication	RS-232 or RS-485; baud 4800–115200
Approvals	RoHS versions available
Sensor type	3-axis solid-state magnetometer + 2-axis electrolytic tilt sensor
Notes	Specs from Jewell ECS.pdf datasheet and ECS User’s Guide. No Instrumart.
Repeatability	Heading ±0.1° static; pitch/roll ±0.1° typical
Update Rate	27.5 measurements per second
Response Time	36 ms minimum
Supply Current	~40 mA run / ~25 mA idle (datasheet); low-power standby available
