Rosemount

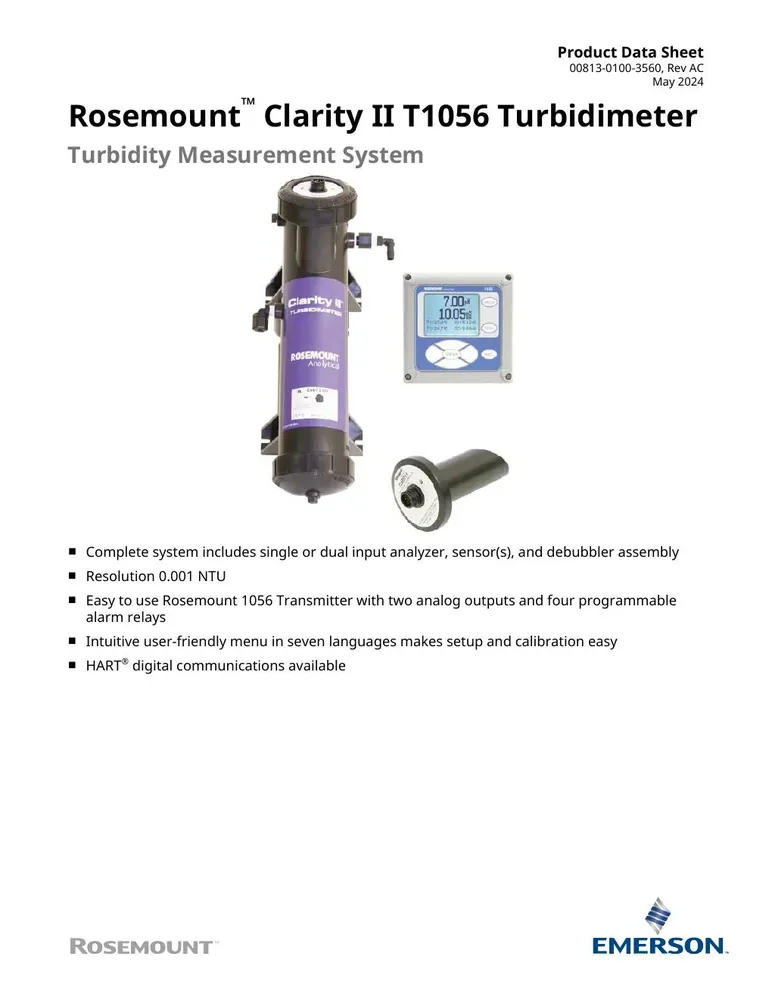

Rosemount Model T1056 Clarity II Turbidimeter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
After cal at 20.0 NTU: 0–1 NTU ±2% of reading or ±0.015 NTU (whichever greater); 0–20 NTU ±2% of reading
Wetted parts
Delrin, glass, EPDM (sensor/chamber)
Ambient temperature
32 to 131 °F (0 to 55 °C); turbidity-only 32 to 122 °F (0 to 50 °C); RH 5–95% non-condensing
Measurement Range
0 to 200 NTU class (display resolution 0.001 NTU; accuracy stated after 20.0 NTU calibration for 0–1 and 0–20 NTU bands)
Resolution
0.001 NTU (four-digit display; decimal shifts across 0.001–1000 class ranges)
Sensor Methods
US EPA 180.1 (incandescent) or ISO 7027 (860 nm LED); specified at order
| Parámetro | Valor |
|---|---|
| Accuracy | After cal at 20.0 NTU: 0–1 NTU ±2% of reading or ±0.015 NTU (whichever greater); 0–20 NTU ±2% of reading |
| Wetted parts | Delrin, glass, EPDM (sensor/chamber) |
| Ambient temperature | 32 to 131 °F (0 to 55 °C); turbidity-only 32 to 122 °F (0 to 50 °C); RH 5–95% non-condensing |
| Measurement Range | 0 to 200 NTU class (display resolution 0.001 NTU; accuracy stated after 20.0 NTU calibration for 0–1 and 0–20 NTU bands) |
| Resolution | 0.001 NTU (four-digit display; decimal shifts across 0.001–1000 class ranges) |
| Sensor Methods | US EPA 180.1 (incandescent) or ISO 7027 (860 nm LED); specified at order |
| Outputs | Two isolated 0–20/4–20 mA (max load 550 Ω); optional HART on Output 1; four Form-C SPDT alarm relays |
| Enclosure | Polycarbonate Type 4X/CSA 4 (IP65); overall 6.10×6.10×5.5 in (155×155×131 mm); ½ DIN cutout |
| Power | 20–30 Vdc (−02) or 85–265 Vac 47.5–65 Hz (−03); 15 W min |
| Sensor Cable | 20 ft (6.1 m) or 50 ft (15.2 m) max; IP65 connector when mated |
| Sample Temperature | 40 to 95 °F (5 to 35 °C); max pressure 30 psig (308 kPa) |
| System Contents | Single/dual-input 1056 analyzer + sensor(s) + debubbler/measuring chamber + cable per sensor |
| Document | PDS 00813-0100-3560 Rev AC May 2024 |
