Endress+Hauser

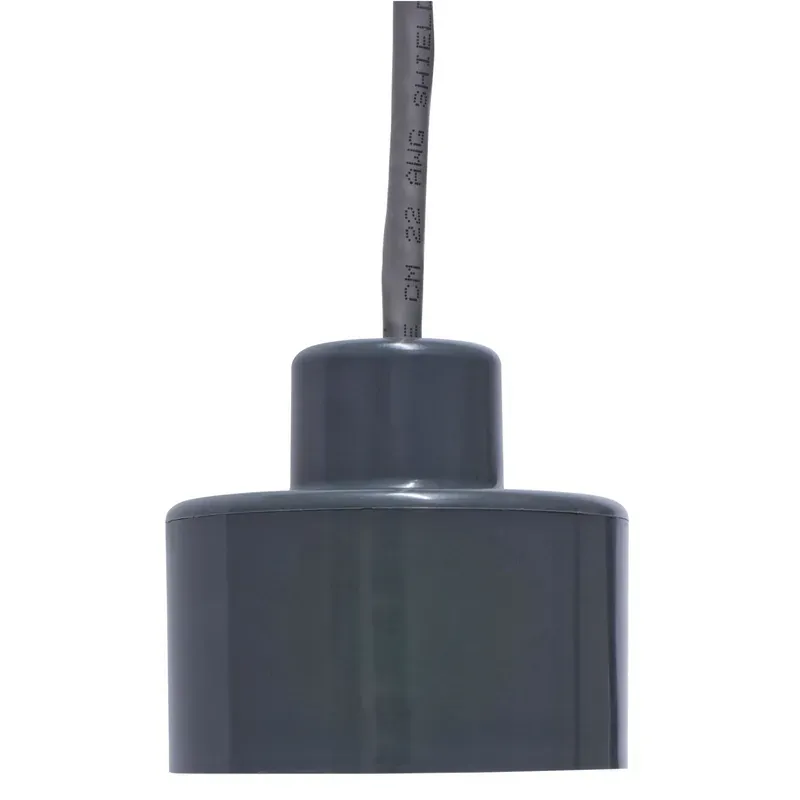

Endress+Hauser Turbimax CUS71D Ultrasonic Interface Sensor
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
0.3 to 10 m (1 to 32 ft)
Process connection
G1 and NPT 3/4 in; fixed cable 15 m
Approvals
EAC
Measuring Principle
Ultrasonic return-time interface / sludge-level measurement (Memosens)
Process Temperature
1 to 50 °C (34 to 122 °F)
Process Pressure Standard
0 to 6 bar (0 to 87 psi)
| Parámetro | Valor |
|---|---|
| Measuring range | 0.3 to 10 m (1 to 32 ft) |
| Process connection | G1 and NPT 3/4 in; fixed cable 15 m |
| Approvals | EAC |
| Measuring Principle | Ultrasonic return-time interface / sludge-level measurement (Memosens) |
| Process Temperature | 1 to 50 °C (34 to 122 °F) |
| Process Pressure Standard | 0 to 6 bar (0 to 87 psi) |
| Process Pressure Wiper | 0 to 0.3 bar (0 to 4.4 psi) |
| Sensor Materials | ABS and epoxy resin; wiper EPDM; housing polyamide |
| Dimensions | Diameter 74 mm; length standard 68 mm / wiper 135 mm |
| Ingress Protection | IP68 |
| Output Communication | Digital Memosens output to Liquiline CM44x |
| Installation | Submerged immersion sensor with fixed cable |
| Ex Certification | None |
| Variants | Standard, wiper, and wiper-plus-turbidity versions |
| Application | Sedimentation tanks, clarifiers, filter backwash, flotation, utilities reuse |
