Badger Meter

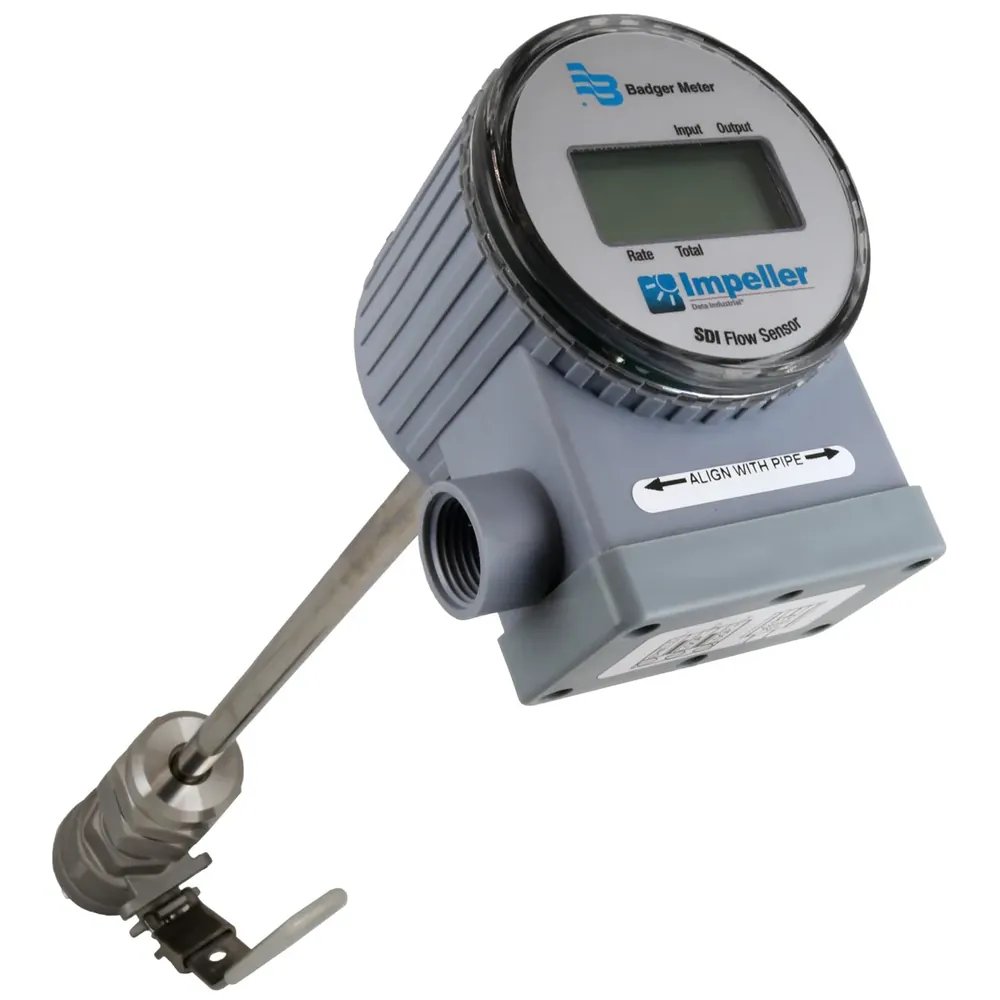

Badger Meter SDI Series Insert Style Flow Sensors
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±1% of rate over optimum flow range with proper straight-run installation
Wetted parts
316 stainless stem/adapter; PPS or PEEK sensor tip
Approvals
NSF/ANSI/CAN Standards 61 and 372
Product Family
Data Industrial SDI Series insert-style impeller flow sensors (stainless steel NSF)
Pipe Sizes
1-1/2…36 in. (38…914 mm) depending on stem length and tapping method
Flow Velocity
Optimum 1…20 ft/s (0.30…6 m/s); extended below 0.5 ft/s
| Parámetro | Valor |
|---|---|
| Accuracy | ±1% of rate over optimum flow range with proper straight-run installation |
| Wetted parts | 316 stainless stem/adapter; PPS or PEEK sensor tip |
| Approvals | NSF/ANSI/CAN Standards 61 and 372 |
| Product Family | Data Industrial SDI Series insert-style impeller flow sensors (stainless steel NSF) |
| Pipe Sizes | 1-1/2…36 in. (38…914 mm) depending on stem length and tapping method |
| Flow Velocity | Optimum 1…20 ft/s (0.30…6 m/s); extended below 0.5 ft/s |
| Repeatability | ±0.5% |
| Outputs | Raw frequency; scaled pulse; 4–20 mA analog; bidirectional analog/scaled options; battery display versions |
| Max Pressure | 1000 psi (68.9 bar) @ 70 °F non-shock (SS); derates with temperature |
| Operating Temperature | Electronics 14…150 °F (−10…65 °C) |
| Enclosure | NEMA 4X polypropylene (line-powered); NEMA 6P battery versions |
| Installation | 1 in. tap; hot-tap isolation-valve models optional |
| Document | SEN-DS-04203-EN (SDI SS NSF PDS) |
