Badger Meter

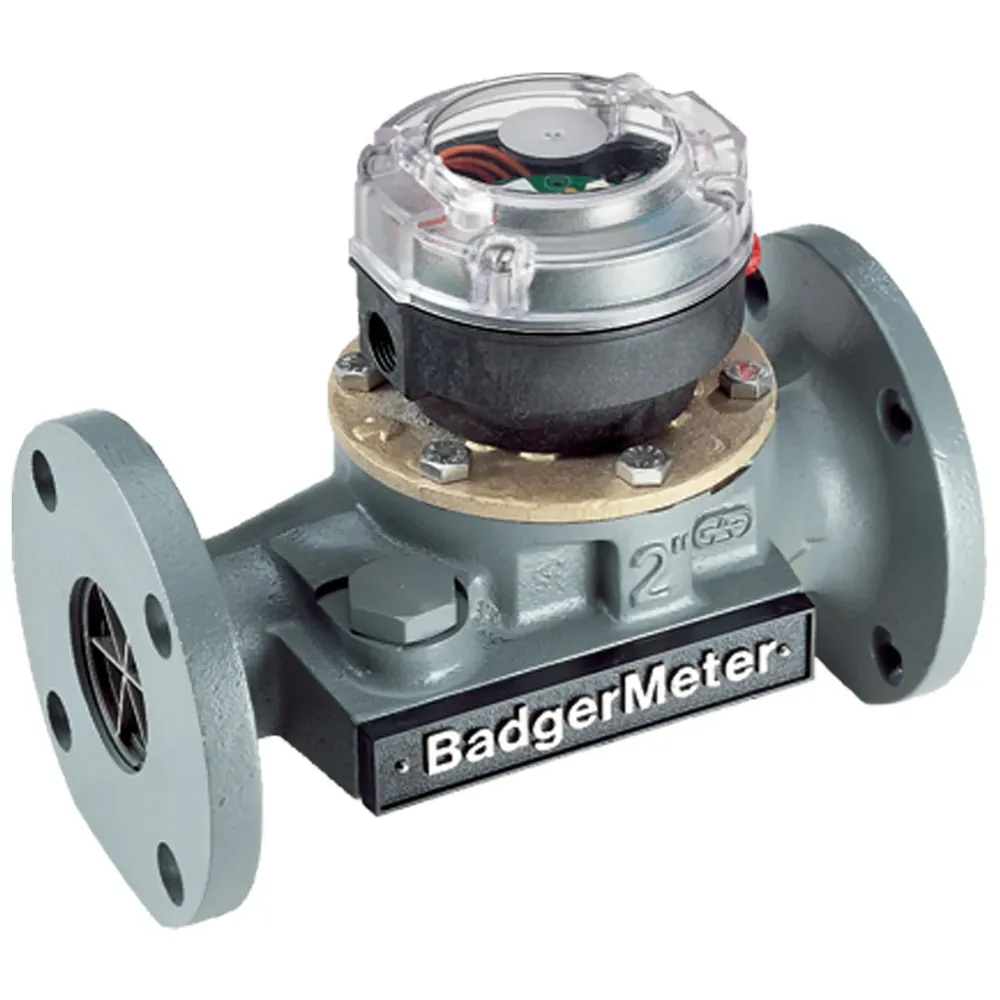

Badger Meter Industrial Turbo Turbine Flow Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±0.5% to ±1.5% of indicated flow (range bands per size)
Product Family
Badger Meter Industrial Turbo turbine flow meter (2–4 in. industrial service)
Line Sizes
2 in., 3 in., 4 in.
Repeatability
0.25%
Flow Examples
2 in. ±0.5% band 20–160 gpm / ±1.5% 8–200 gpm; 3 in. 60–350 / 10–450 gpm; 4 in. 100–1000 / 25–1250 gpm
Temperature Range
32–250 °F (0–121 °C)
| Parámetro | Valor |
|---|---|
| Accuracy | ±0.5% to ±1.5% of indicated flow (range bands per size) |
| Product Family | Badger Meter Industrial Turbo turbine flow meter (2–4 in. industrial service) |
| Line Sizes | 2 in., 3 in., 4 in. |
| Repeatability | 0.25% |
| Flow Examples | 2 in. ±0.5% band 20–160 gpm / ±1.5% 8–200 gpm; 3 in. 60–350 / 10–450 gpm; 4 in. 100–1000 / 25–1250 gpm |
| Temperature Range | 32–250 °F (0–121 °C) |
| Min Operating Pressure | 7 psi (0.5 bar) |
| Max Operating Pressure | Standard 125/150 psi (9/10 bar) |
| Bearings | Long-lasting ceramic bearings |
| Outputs | Pickups include open-collector transistor pulse; mechanical/electromechanical options |
| Serviceability | Inline serviceability without removing meter from line |
| Document | TRB-DS-01191-EN (Industrial Turbo Meter PDS) |
