Seametrics

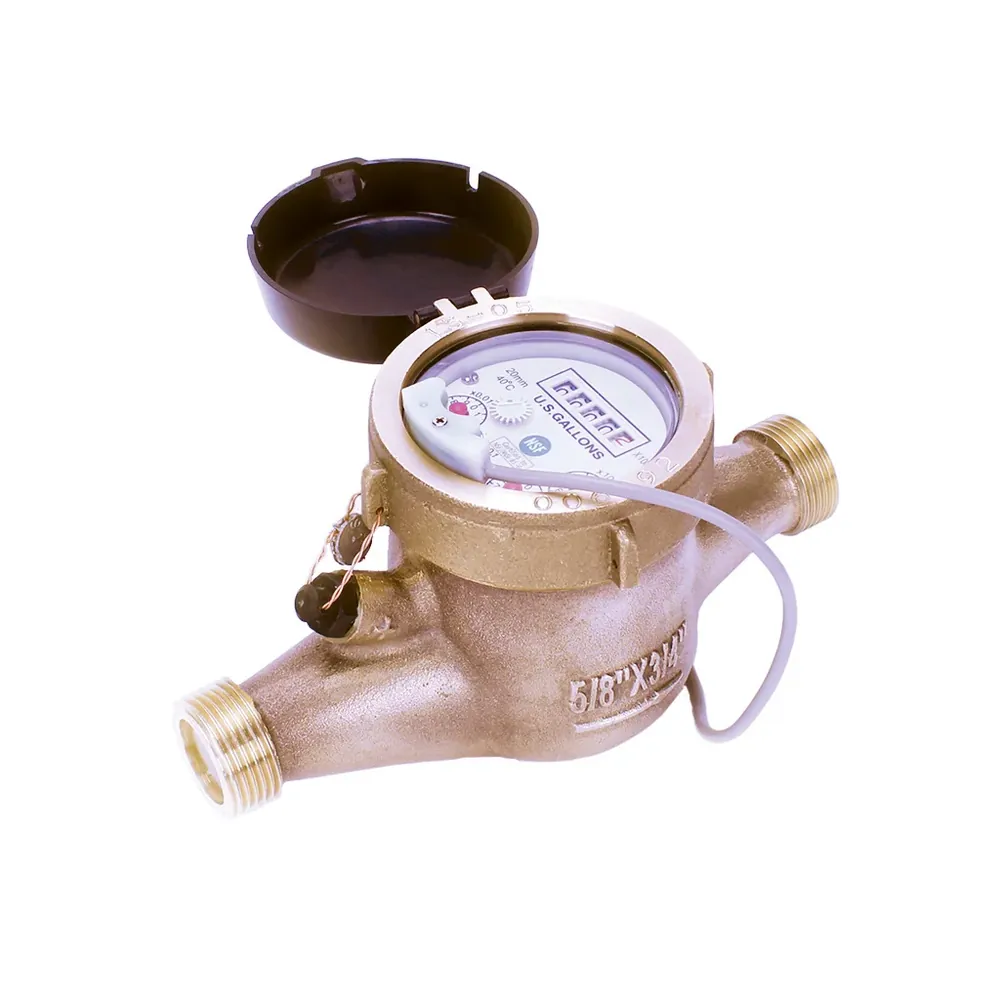

Seametrics MJN Series Pulse Water Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±1.5% of reading
Type
NSF/ANSI 61 brass-body dry-top multi-jet pulse water meter (MJN Series)
Sizes
¾ in, 1 in, 1½ in, and 2 in
Pressure
150 psi operating (10.3 bar)
Temperature
105 °F (40 °C) maximum cold-water service
Outputs
MJNE Hall-effect (powered); MJNR reed dry contact; MJNT totalizer-only
| Parámetro | Valor |
|---|---|
| Accuracy | ±1.5% of reading |
| Type | NSF/ANSI 61 brass-body dry-top multi-jet pulse water meter (MJN Series) |
| Sizes | ¾ in, 1 in, 1½ in, and 2 in |
| Pressure | 150 psi operating (10.3 bar) |
| Temperature | 105 °F (40 °C) maximum cold-water service |
| Outputs | MJNE Hall-effect (powered); MJNR reed dry contact; MJNT totalizer-only |
| Pulse Rates | Field-changeable pulse rates (e.g. 20P/10P/…/1G gallons or CF/CM) |
| Certification | Certified to NSF/ANSI 61; complies with Federal Public Law 111-380 |
| Applications | Potable water, cooling-tower chemical control, industrial water treatment, pump pacing |
| Document | Seametrics LT-14382 MJN specs + LT-14383 instructions |
